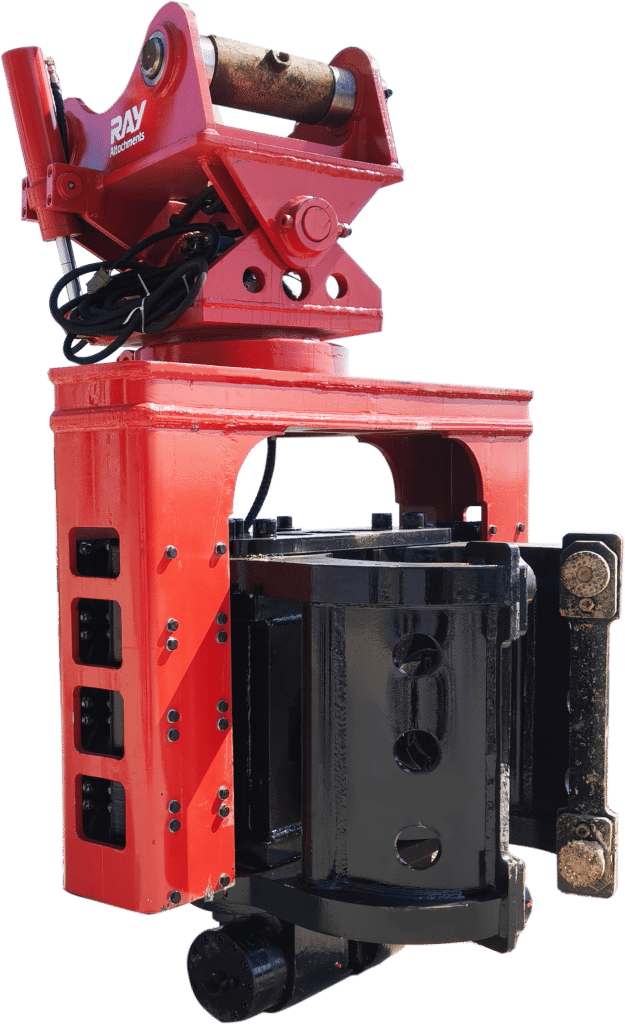

China Side Grip Pile Driver Manufacturer

Precision side-clamping pile drivers for confined spaces. Ensures stable pile handling in tight construction sites.

  • Core parts adopted famous brand.
  • Clip mouth is One-piece molding for greater durability.
  • Lightweight eccentric wheel design and stronger excitation force.
  • Horizontally – installed shock – absorbing rubber: better fit, less deformation.
  • 360 degree rotation + 25 degree tilting degree.
  • Widely used for H beams, timber piles, sheet piles, tube piles, etc.
Contact us Brochure

Attachments – Side Grip Pile Driver

The side grip vibro hammers, namely SV30, SV40, SV50, SV60, and SV70, are advanced excavator attachments crafted to proficiently handle pile driving and extraction tasks. Suited for a wide array of construction scenarios, from building foundations to infrastructure development projects.

The SV30 model is meticulously designed to integrate with 13 – 18 ton excavators, offering reliable and efficient performance for relatively smaller scale foundation works.

The SV40 is engineered to pair flawlessly with 20 – 23 ton machinery, bringing enhanced power and stability to take on more challenging jobs.

For medium-sized construction projects, the SV50 works optimally with 24 – 27 ton excavators, ensuring precise pile handling.

When dealing with larger and more demanding applications, the SV60 is custom-built for 28 – 33 ton equipment, providing robust capabilities.

And the SV70 is tailor-made for 34 – 40 ton heavy-duty excavators, allowing it to dominate the toughest pile driving and extraction challenges on-site.

ModelUnitSV30SV40SV50SV60SV70
Eccentric Momentkg·m3.04.05.16.37.3
Centrifugal ForceKN206-297275-396350-505433-624502-723
Frequencyrpm2500-30002500-30002500-30002500-30002500-3000
Total WeightT1.80 2.63 2.76 3.21 3.24
lbs/pounds3968.32 5798.16 6084.76 7076.84 7142.98
Swing/tilt Angledegree360/+25360/+25360/+25360/+25360/+25
   Oil FlowLpm80 110 165 221 256
gpm21 29 44 58 68
Amplitudemm3.35667
inch0.13 0.20 0.24 0.24 0.28
Side Gripping Forceton5050506060
lbs/pounds110231110231110231132277132277
  Clamping ForceT4343436262
lbs/pounds947999479994799136686136686
  Arm  Strokemm250250250250250
inch9.84 9.84 9.84 9.84 9.84
Dimensions(L*W*H)mm1030x1485x2042 1350x1050x24101350x1050x24101600x1280x26101600x1280x2610
inch40.55∗58.46∗80.3953.15∗41.34∗94.8853.15∗41.34∗94.8862.99∗50.39∗102.7662.99∗50.39∗102.76
ExcavatorT13-1820-2324-2728-3334-40
lbs/pounds28660−3968344092−5070652911−5952561729−7275274957−88185
Sheet Piles Widthmm400-800350-800400-1000
inch15.75−31.5013.78−31.5015.75−39.37
H-BeamsmmH100- H400H200-H500H250-H500
inchH3.94−H15.75H7.87−H19.69H9.84−H19.69
 Timber Pilesmmφ220-325φ120-400φ160-600
inchφ8.66−12.80φ4.72−15.75φ6.30−23.62
Tube Pilesmmφ90-350φ120-400φ160-600
inchφ3.54−13.78φ4.72−15.75φ6.30−23.62
Max Pile Length(common soil )m1212121818
inch472.44 472.44 472.44 708.66 708.66
Max Clamping Pile Weightkg6001000100015001500
lbs/pounds1322.772204.222204.223306.933306.93

Ray Side Grip Pile Driver

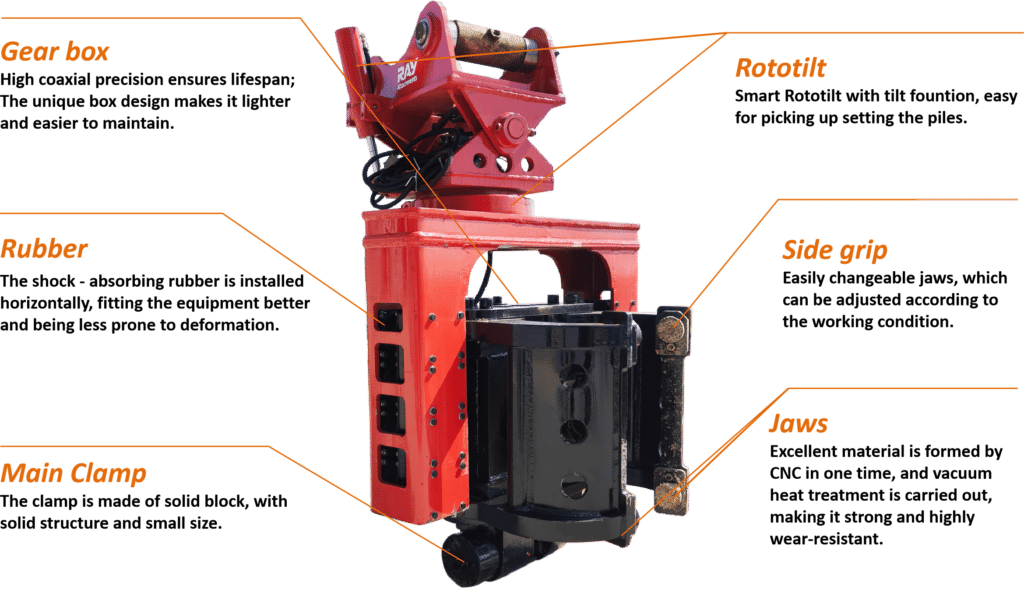

  • Gear box
    High coaxial precision ensures lifespan; The unique box design makes it lighter and easier to maintain.
  • Rubber
    The shock – absorbing rubber is installed horizontally, fitting the equipment better and being less prone to deformation.
  • Main Clamp
    The clamp is made of solid block, with solid structure and small size.
  • Rototilt
    Smart Rototilt with tilt fountion, easy for picking up setting the piles.
  • Side grip
    Easily changeable jaws, which can be adjusted according to the working condition.
  • Jaws
    Excellent material is formed by CNC in one time, and vacuum heat treatment is carried out, making it strong and highly wear-resistant.
