China Multi Quick Hitch Manufacturer

Double-locking quick hitches for fast tool changes. Enhances excavator versatility and reduces downtime.

  • Triple-lock design ensures reliability and security.
  • Fully automated operation eliminates the need to leave the driver’s seat.
  • Slide safety system matches various attachments widely.
Contact us Brochure

Attachments – Multi Quick Hitch

The RQH01M, RQH01D, RQH02M, RQH02D, RQH04M, RQH04D, RQH06M, RQH06D, RQH08M, RQH08D and RQH10M Multi Quick Couplers are high – efficiency excavator attachments designed to enable rapid and secure connection and disconnection of various attachments.

  • RQH01M: 1-2 ton excavators
  • RQH01D: 2-4 ton excavators
  • RQH02M: 2.5-4 ton excavators
  • RQH02D: 4-6 ton excavators
  • RQH04M: 4-6 ton excavators
  • RQH04D: 6-8 ton excavators
  • RQH06M: 10-15 ton excavators
  • RQH06D: 10-15 ton excavators
  • RQH08M: 15-17 ton excavators
  • RQH08D: 15-17 ton excavators
  • RQH10M: 27-35 ton excavators
ModelUnitRQH01MRQH01DRQH02MRQH02DRQH04MRQH04DRQH06MRQH06DRQH08MRQH08DRQH10M
CarrierT
lbs/pounds		1~2
2200~4400		2~4
4400~8800		2.5~4
5500~8800		4~6
8800~13200		4~6
8800~13200		6~8
13200~17600		10~15
22000~33000		10~15
22000~33000		15~27
33000~59400		15~27
33000~59400		27~35
59400~77000
Pin Diametermm
inch		30
1.18		35/40
1.38/1.57		40/45
1.57/1.77		40/45
1.57/1.77		40/45
1.57/1.77		50/55
1.97/2.17		60/65
2.36/2.56		65
2.56		70/80
2.76/3.15		80/90
3.15/3.54		90/ 100/ 110
3.54/3.94/4.33
C-to-C Distancemm
inch		115~140
4.53~5.51		160-200
6.3~7.87		185~220
7.28~8.66		215~250
8.46~9.84		255~290
10.04~11.42		262~320
10.31~12.6		340~400
13.39~15.75		355~420
13.98~16.54		380~435
14.96~17.13		425~485
16.73~19.09		460~550
18.11~21.65
Arm Widthmm
inch		100~125
3.94~4.92		110~125
4.33~4.92		125~140
4.92~5.51		145~180
5.71~7.09		150~180
5.91~7.09		185~220
7.28~8.66		215~250
8.46~9.84		250~270
9.84~10.63		300~340
11.81~13.39		305~340
12.01~13.39		350-390
13.78~15.35
Oil PressureBar
Psi		40~248
580~3596		40~248
580~3596		40~248
580~3596		40~248
580~3596		40~248
580~3596		40~205
580~2973		40~205
580~2973		40~205
580~2973		40~205
580~2973		40~205
580~2973		40~205
580~2973
Oil FowL/min
Gpm		10~20
2.64~5.28		10~20
2.64~5.28		10~20
2.64~5.28		10~20
2.64~5.28		10~20
2.64~5.28		10~20
2.64~5.28		10~20
2.64~5.28		10~20
2.64~5.28		10~20
2.64~5.28		10~20
2.64~5.28		10~20
2.64~5.28
Hosemm
Inch		6.35
1/4		6.35
1/4		6.35
1/4		6.35
1/4		6.35
1/4		6.35
1/4		6.35
1/4		6.35
1/4		6.35
1/4		6.35
1/4		6.35
1/4
Unit WeightKg
lbs/pounds		21
46.2		31
68.2		47
103.4		60
132		70
154		97
213.4		160
352		170
374		275
605		310
682		427
939.4
Lengthmm
inch		370
14.57		400
15.75		570
22.44		570
22.44		585
23.03		655
25.79		745
29.33		876
34.49		940
37.01		985
38.78		1065
41.93
Widthmm
inch		200
7.87		220
8.66		280
11.02		280
11.02		290
11.42		312
12.28		390
15.35		390
15.35		475
18.70		475
18.70		510
20.08
Heightmm
inch		210
8.27		225
8.86		305
12.01		305
12.01		305
12.01		335
13.19		420
16.54		420
16.54		505
19.88		505
19.88		565
22.24

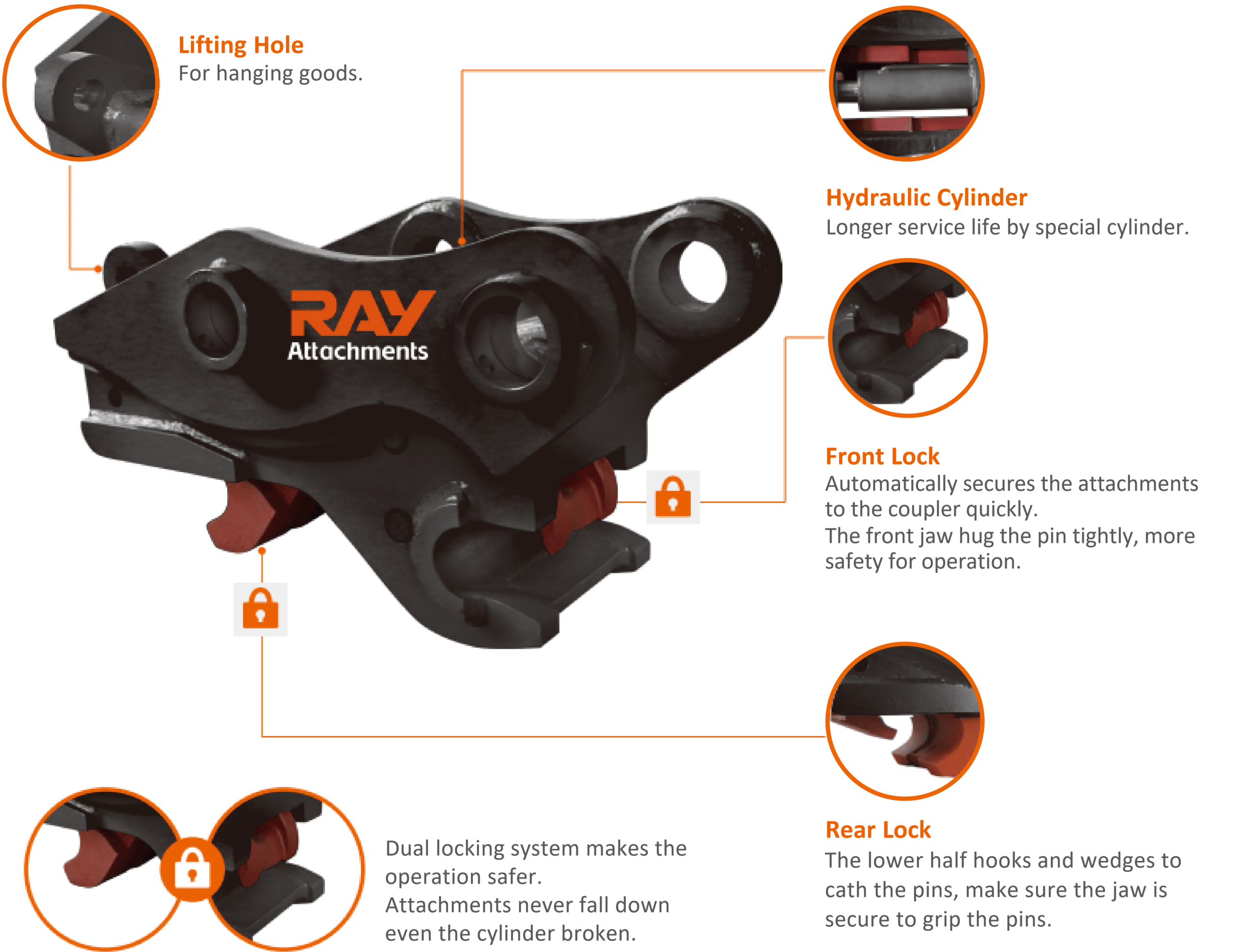

Multi Quick Hitch Features

  1. Lifting Hole: For hanging goods.
  2. Hydraulic Cylinder: Longer service life by special cylinder.
  3. Front Lock: Automatically secures the attachments to the coupler quickly. The front jaw hug the pin tightly, more safety for operation.
  4. Rear Lock: The lower half hooks and wedges to cath the pins, make sure the jaw is secure to grip the pins.
  5. Dual locking system makes the operation safer.
  6. Attachments never fall down even the cylinder broken.

About
RAY Attachments

Founded in 2002, RAY began with the production of steel pipes and evolved into a profound understanding of excavator needs. Initially engaged in trade, we were among the pioneers in bringing Chinese manufacturing excellence to the world and introducing hydraulic breakers to the international market. Our first international client, Mr. Yousaf, came from Qatar in 2009, marking the beginning of many successful collaborations.

Learn More
Play

Hassle-Free Warranty

12 months – 36 months (option)


One-stop Shopping

Save your 30% cost at least
Save 50% time

Quick Response

2 hours response
Provide the solution within 12 hours

Business Support

Customer multiplier plan


Related Attachments

Featured Videos

Frequently asked questions

We are a manufacturer. We have over 23 years of experience in manufacturing attachments of excavators and skid steers. Changzhou Raymond International Trading Co., Ltd is our export platform.

We provide 12 months warranty, more details, please contact us.

Our attachments fit 1.5-120 tonnage excavators, covering leading brands such as SANY, XCMG, LIUGONG, ZOOMLION, SUNWARD, CAT, JCB, KOBELO, HITACHI, KOMATSU, DOOSAN, etc. We have over 8 years of experience collaborating with authorized excavator brand distributors globally.

Yes, we provide OEM, please share more details and discuss with us.

Payment≤20000 USD, 100% in advance.

Payment＞20000 USD, 30% T/T in advance, balance after production completed. Or 100%LC at sight.

Normally, 3-5 days after payment.

It takes 20-25 workdays for 2x40ft containers. Sample order in 5 days.

Please tell us which country are your from and what products are you looking for. Because we have some goods in dealer’s warehouse, you can contact us and get their contact number.

We hold ISO 9001:2015 Quality Management System certification and CE compliance for our product range. Additionally, we are an active member of the Association of Equipment Manufacturers (AEM) in the U.S.

Selected attachments utilize high-strength wear-resistant steel and advanced manufacturing processes. Every product undergoes 100% quality inspection to ensure long-term reliability in harsh environments.

We guarantee a 48-hour response time and direct replacement part delivery to resolve problems promptly.

Yes. We offer video tutorials, downloadable operation manuals, and remote diagnostic support.

You need to pass the enterprise qualification review, including business license, industry experience, etc., and sign a cooperation agreement.

The authorization policies in different regions may be different, so you need to contact the corresponding regional business department.

Submit your proposal to our Marketing Department in advance for approval.
