China Vibro Ripper Manufacturer

High-frequency vibratory rippers to loosen compacted soil/rock. Improves excavation speed in tough terrain.

  • Productivity can reach up to 5 times as equivalent to breaker.
  • Low noise level (Approx.30dBA lower than equivalent breaker).
  • Underwater works.
  • All units are tested before be delivered to the customer.
Contact us Brochure

Attachments – Vibro Ripper

The RVR-30 to RVR-D10 Vibro Rippers are designed for high-efficiency rock and concrete breaking in quarrying, mining, and demolition, these hydraulic excavator attachments deliver powerful, precise performance in tough environments.

Featuring advanced motor configurations and robust construction, they ensure reliable operation across hard materials and demanding job sites.

ModelRVR-30RVR-40RVR-50RVR-60RVR-E7RVR-D8RVR-D10
Power(KW)757585102170-210204-255255-320
Motor(CC)9090110125110*2125*2110*3
Impact force(KN)295315385450550750860
SizeLength(mm)2780278032353235376540304340
Width(mm)96096011101110118011601160
Height(mm)1400140015651565177519002360
Working flowL/min120-170145-195155-210175-250308-400350-450450-675
gpm32-4538-5241-5546-6681-10692-119119-178
Working powerMpa26-3126-3126-3126-3126-3126-3126-31
Weight(Kg)400043005200550070001000014500
ExcavatorT20-2525-2930-3636-4646-6060-9090-120
lbs/pounds44092-5511655116-6393466139-7936679366-101413101413-132277132277-198416198416-264555
* RVR -XX: single motor type, RVR-EX: double motors type, RVR-DX: double motors and four eccentric blocks type.

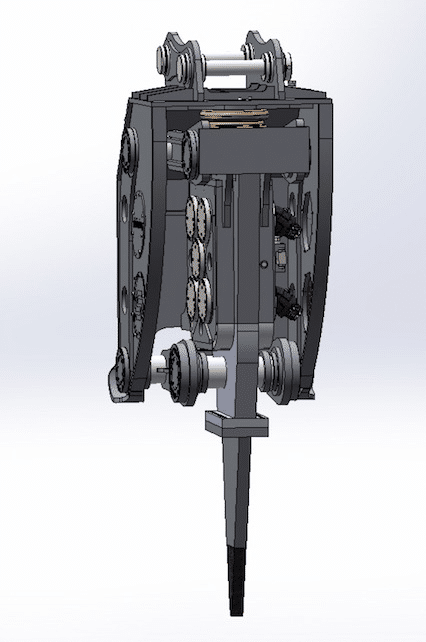

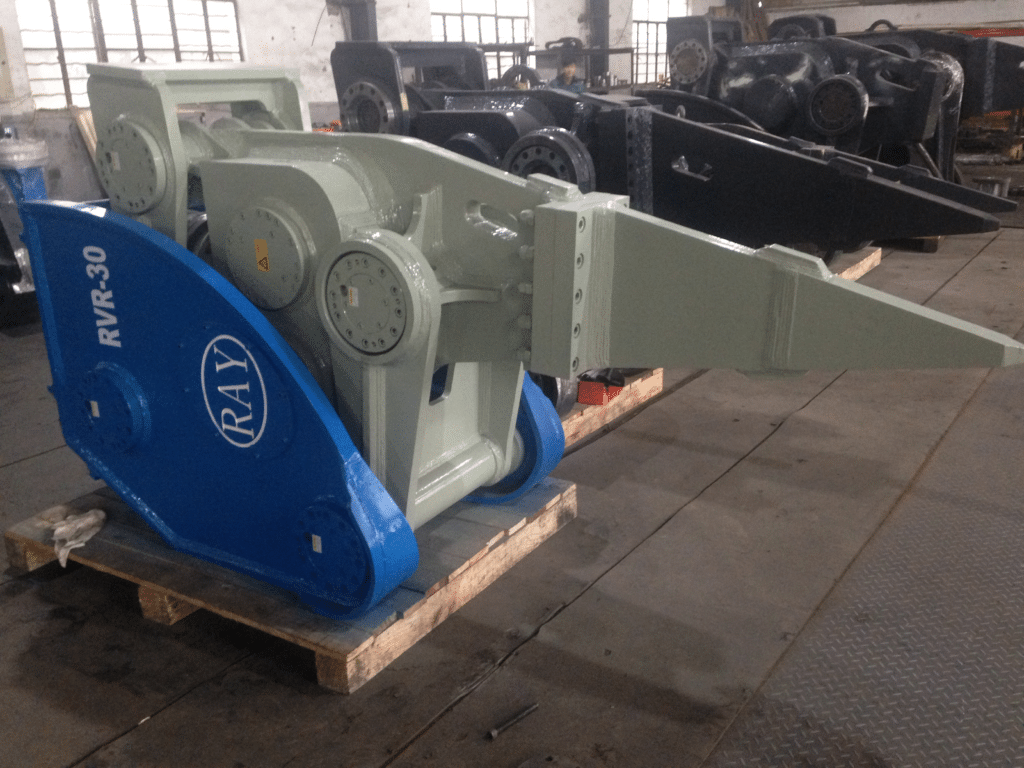

RVR-30 CONCENTRIC SINGLE MOTORS TYPE VIBOR

ModelRVR-30
Power75 KW
Motor90 CC
Impact force295 KN
Length2780 mm
Width960 mm
Height1400 mm
Wroking flow120-170 L/min
Working power26-31 Mpa
Weight4000 Kg
Excavator20-25 T
One set included1. Vibro ripper: 1 set.
2. Bottom damping block: 2 pcs.
3. Tool box : 1 set.
4. Hoses: 1 set.
Description:It can work for losse rock, some stand stone, city roadbed, and thicker frozen earth.
Mohs’ hardness reference table:3-4 level. Max rock strength: 120Mpa
Rock strength reference(Mpa):Shale 10-100; Sandstone 20-170; Mudstone 12-20; Conglomerate 2-60; Siltstone 25-40; Fine sandstone 8.6-29; Medium-grains sandstone 60-115; Coarse sandstone 20-80; Dolomite 70-100; Red slate 70-90; Alteration slate 50-80; Changlongjie shale 40-60; Basaltic rock: 40-80; Gravel-containing quartz sandstone: :80-90; Metamorphic granodiorite 80-120; Chlorite quartz schist 80-130 and so on;

One set parts pictures

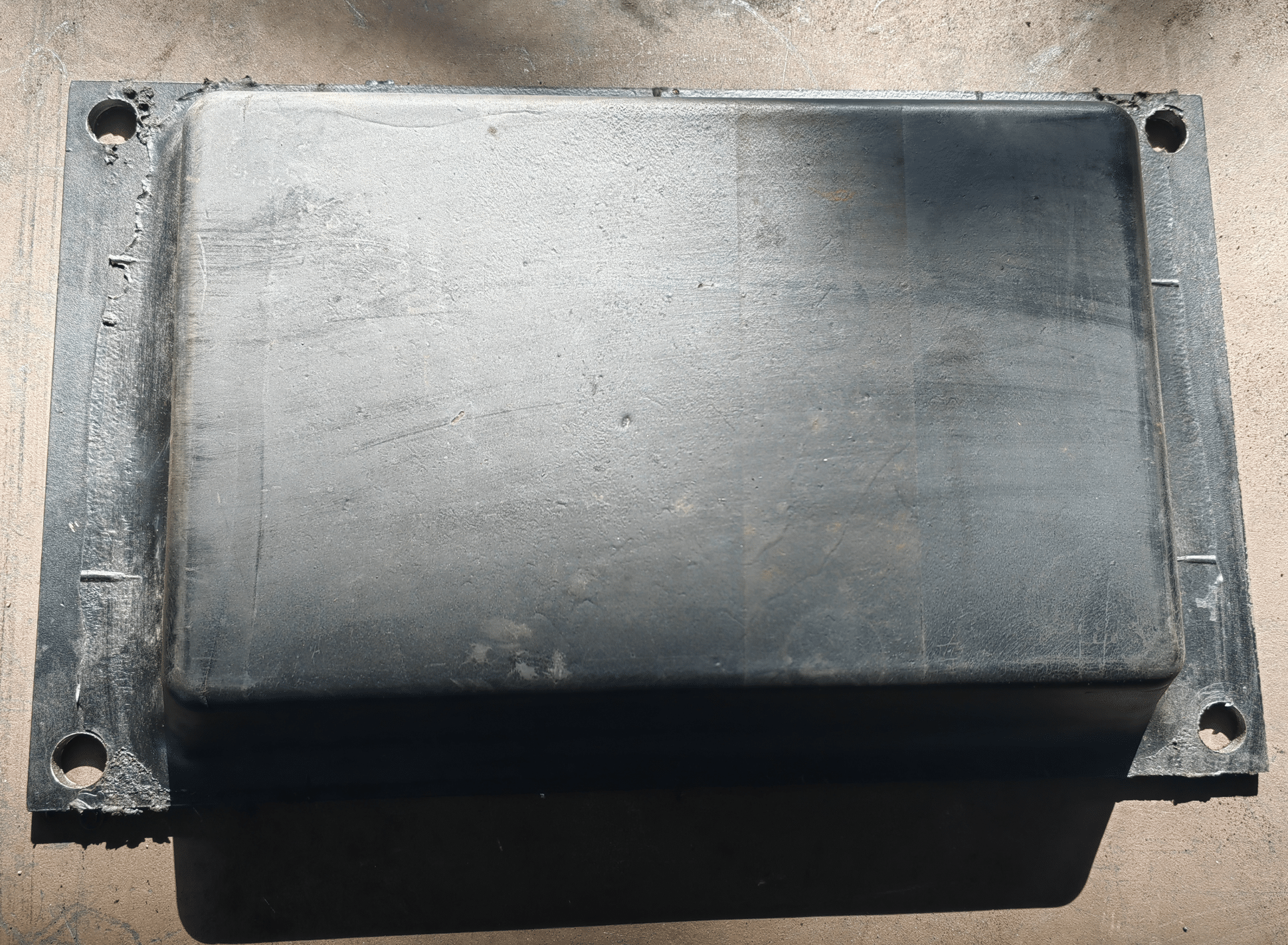

  • Bottom rubber

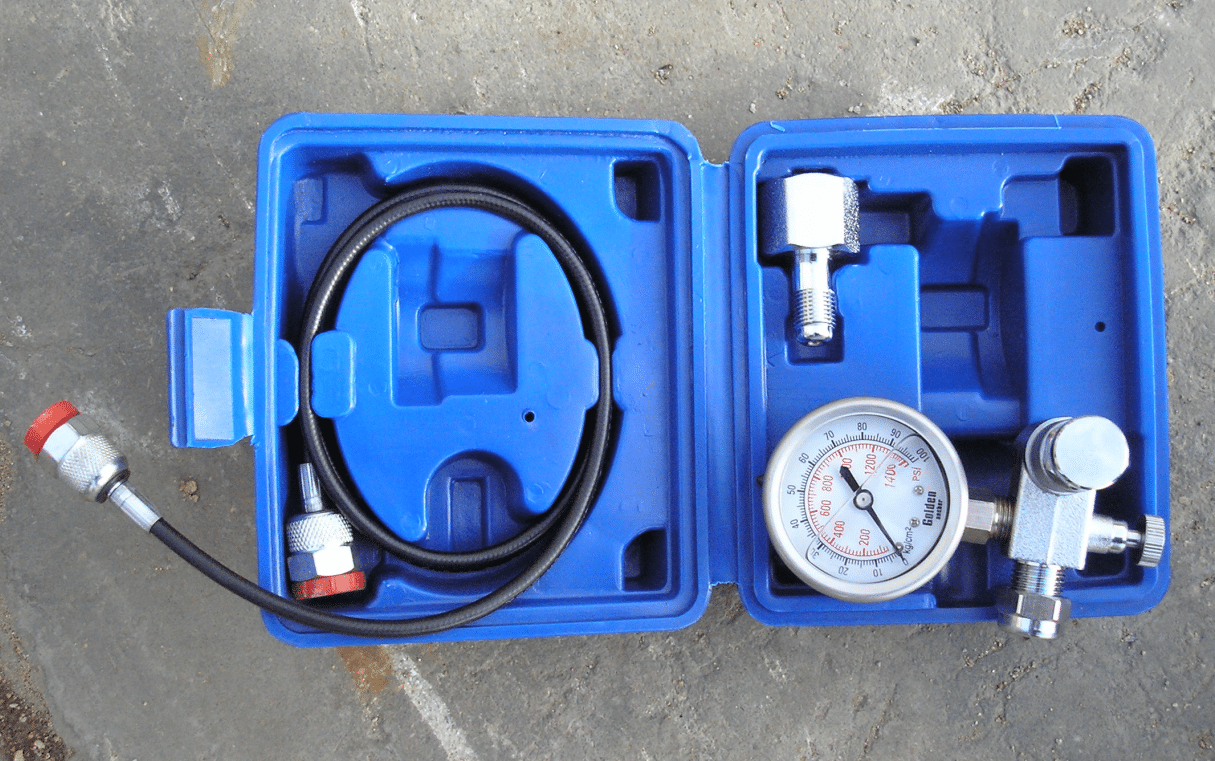

  • N2 gas charging

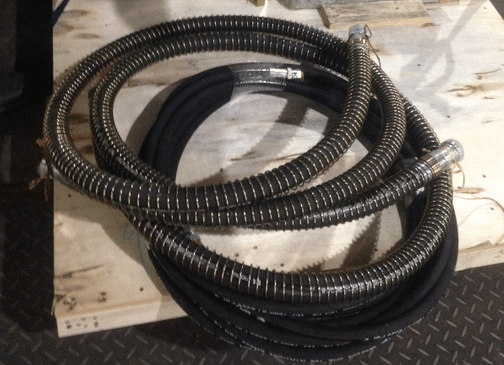

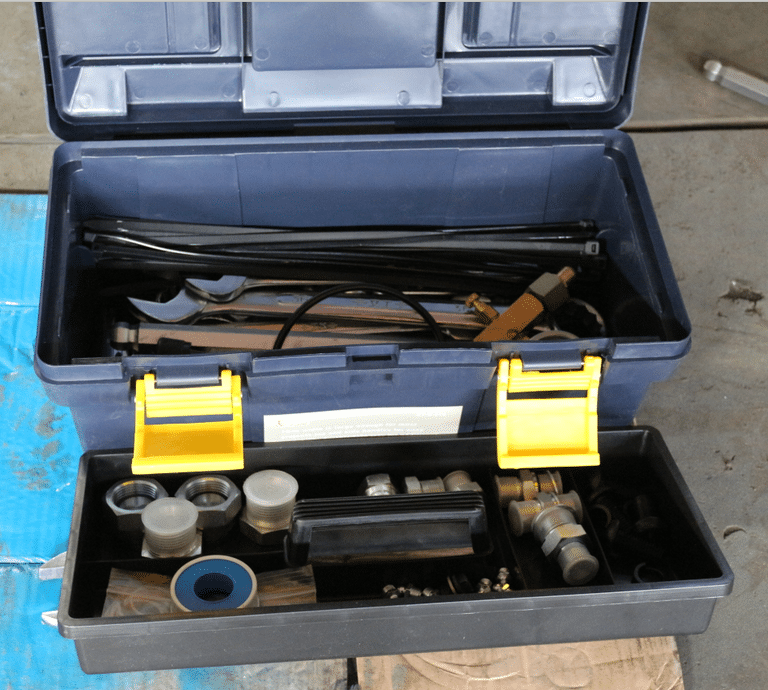

  • Tool box & hoses
  • Tool box & hoses

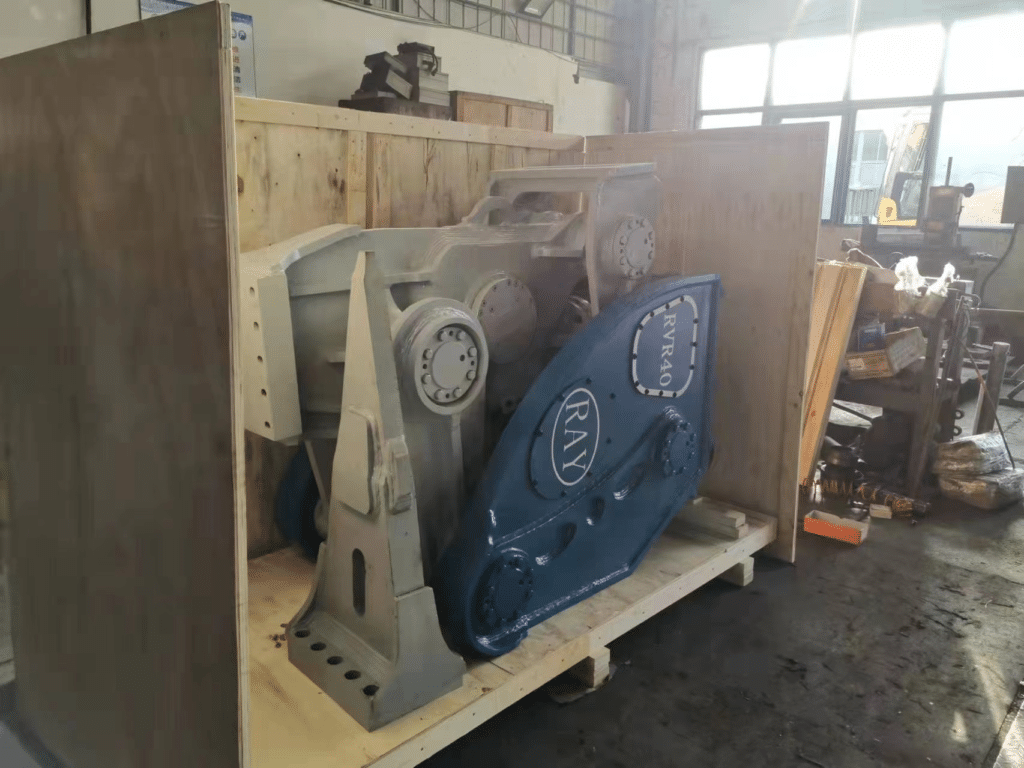

RVR-40 CONCENTRIC SINGLE MOTORS TYPE VIBOR

ModelRVR-40
Power75 KW
Motor90 CC
Impact force315 KN
Length2780 mm
Width960 mm
Height1400 mm
Wroking flow145-195 L/min
Working power26-31 Mpa
Weight4000 Kg
Excavator25-29 T
One set included1. Vibro ripper: 1 set.
2. Bottom damping block: 2 pcs.
3. Tool box : 1 set.
4. Hoses: 1 set.
Description:It can work for losse rock, some stand stone, city roadbed, and thicker frozen earth.
Mohs’ hardness reference table:3-4 level. Max rock strength: 120Mpa

One set parts pictures

  • Bottom rubber
  • N2 gas charging
  • Tool box & hoses
  • Tool box & hoses

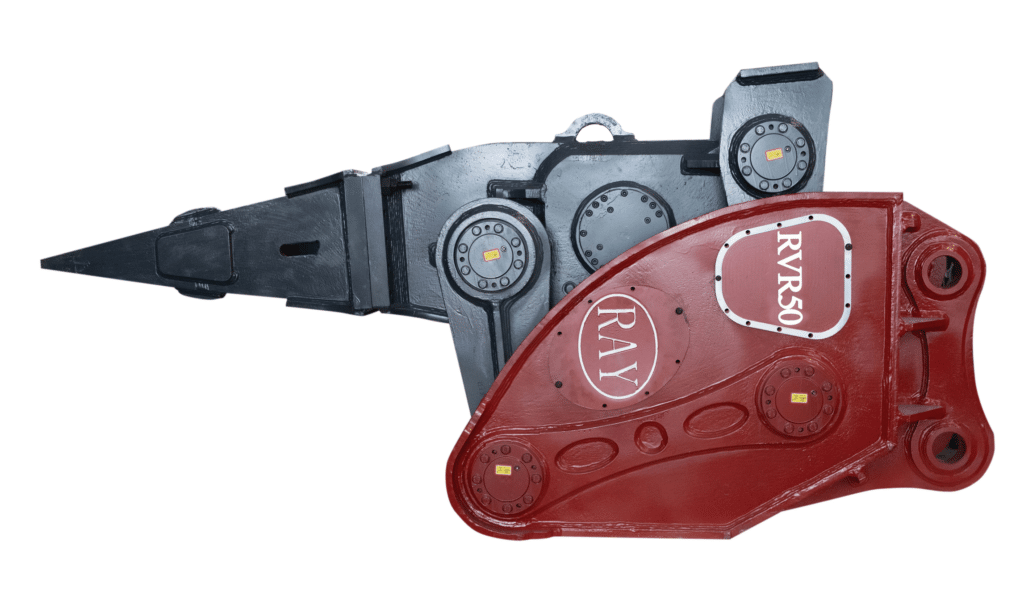

RVR-50 CONCENTRIC SINGLE MOTORS TYPE

ModelRVR-50
Power85 KW
Motor110 CC
Impact force385 KN
Length3235 mm
Width1110 mm
Height1565 mm
Wroking flow155-210 L/min
Working power26-31 Mpa
Weight5200 Kg
Excavator30-36 T
One set included1. Vibro ripper: 1 set.
2. Bottom damping block: 2 pcs.
3. Tool box : 1 set.
4. Hoses: 1 set.
Description:It can work for losse rock, some stand stone, city roadbed, and thicker frozen earth.
Mohs’ hardness reference table:5-6 hardness level : Apatite, Syenite.
Rock strength reference(Mpa):Design for some big earthwork and some stone mine.
 It has special effects on shale, fault fracture zone and some decomposed rock

One set parts pictures

  • Bottom rubber
  • N2 gas charging
  • Tool box & hoses
  • Tool box & hoses

RVR-60 CONCENTRIC SINGLE MOTORS TYPE

ModelRVR-60
Power102 KW
Motor125 CC
Impact force450 KN
Length3235 mm
Width1110 mm
Height1565 mm
Wroking flow175-250 L/min
Working power26-31 Mpa
Weight5500 Kg
Excavator36-46 T
One set included1. Vibro ripper: 1 set.
2. Bottom damping block: 2 pcs.
3. Tool box : 1 set.
4. Hoses: 1 set.
DescriptionAt some big earth work area.RVR60  breakerd 15 cubic meter per hour (sand stone), wider working scopes and could replacing part of the blasting work.
Mohs’ hardness reference table5-6 level(Typical stone: Apatite, Syenite).
Rock strength reference(Mpa)Shale 10-100; Sandstone 20-170; Mudstone 12-20; Conglomerate 2-60; Siltstone 25-40; Fine sandstone 8.6-29; Medium-grains sandstone 60-115; Coarse sandstone 20-80; Dolomite 70-100; Red slate 70-90; Alteration slate 50-80; Changlongjie shale 40-60; Basaltic rock: 40-80; Gravel-containing quartz sandstone: 80-90; Metamorphic granodiorite 80-120; Chlorite quartz schist 80-130 and so on;

One set parts pictures

  • Bottom rubber
  • N2 gas charging
  • Tool box & hoses
  • Tool box & hoses

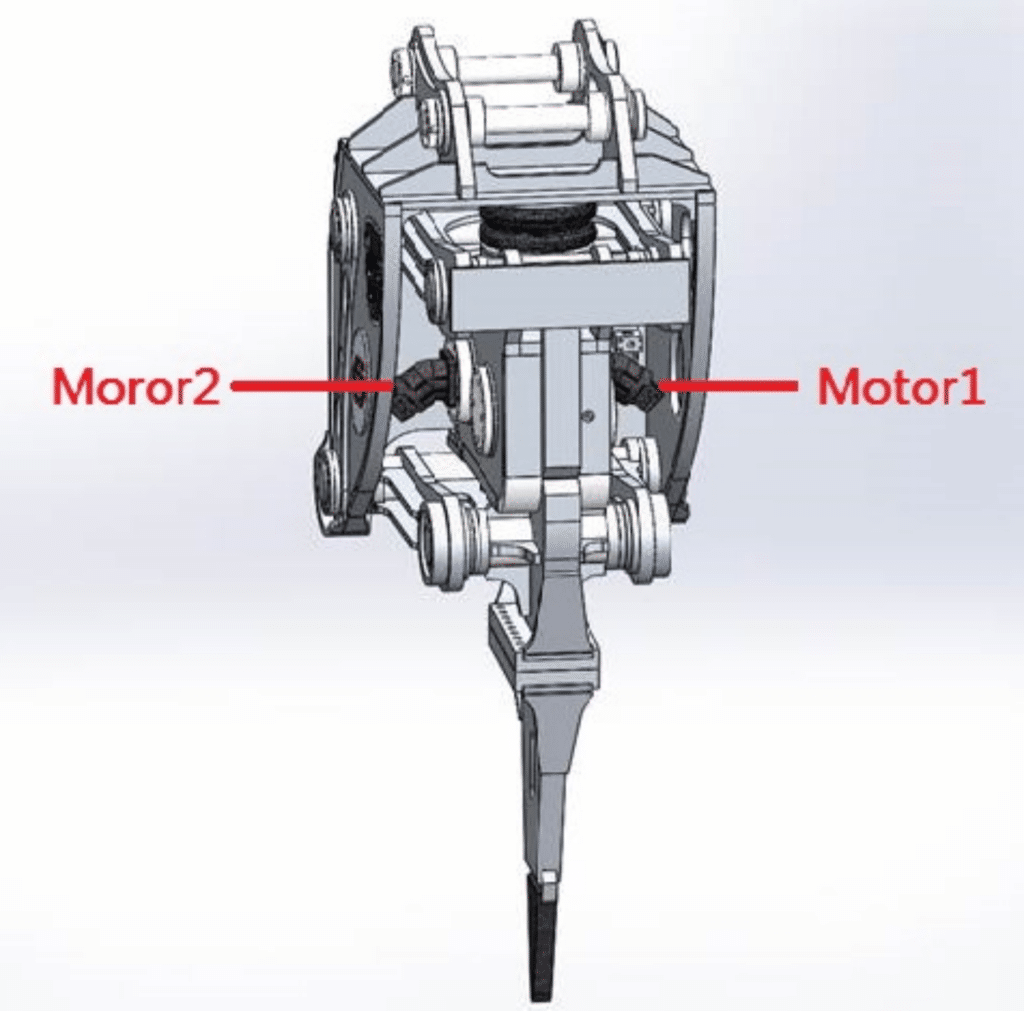

RVR-E7 SUPERPOSITION DOUBLE MOTORS TYPE

ModelRVR-E7
Power170-210 KW
Motor110*2 CC
Impact force550 KN
Length3765 mm
Width1180 mm
Height1775 mm
Wroking flow308-400 L/min
Working power26-31 Mpa
Weight7000 Kg
Excavator46-60 T
One set included1. Vibro ripper: 1 set.
2. Bottom damping block: 2 pcs.
3. Tool box : 1 set.
4. Hoses: 1 set.
Description:LG952HD with RVR-E7 for Weathered rock, productivity 60-100CBM/hour.

One set parts pictures

  • Bottom rubber
  • N2 gas charging
  • Tool box & hoses
  • Tool box & hoses

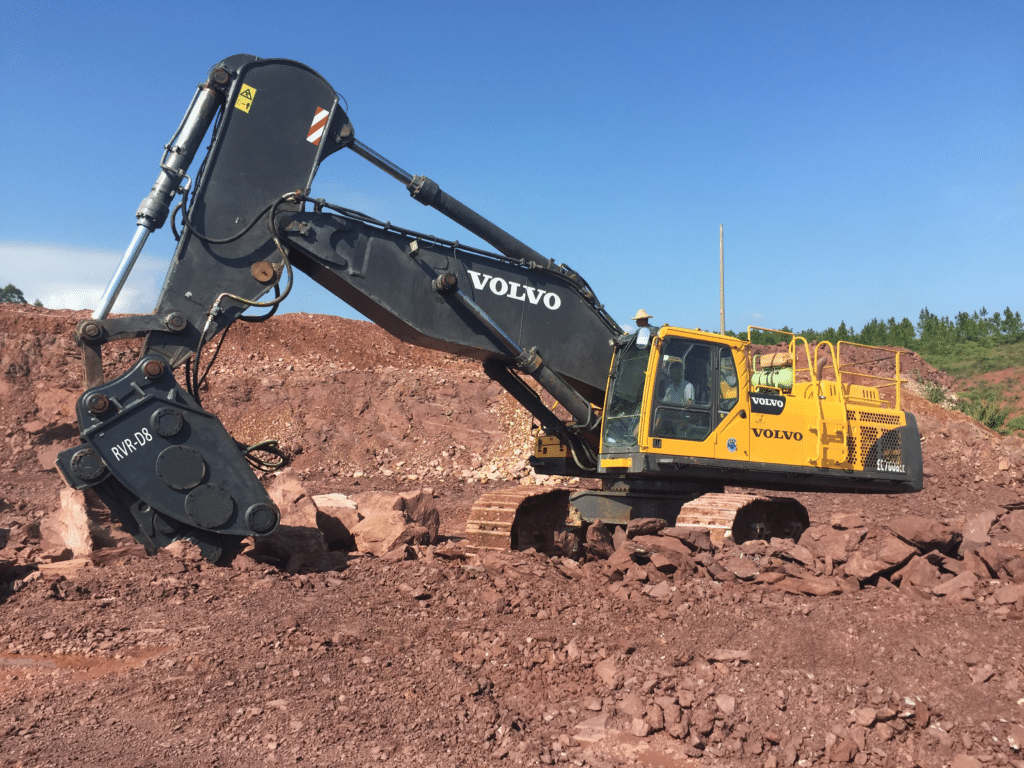

RVR-D8 SUPERPOSITION DOUBLE MOTORS TYPE

ModelRVR-D8
Power204-255 KW
Motor125*2 CC
Impact force750 KN
Length4030 mm
Width1160 mm
Height1900 mm
Wroking flow350-450 L/min
Working power26-31 Mpa
Weight10000 Kg
Excavator60-90 T
One set included1. Vibro ripper: 1 set.
2. Bottom damping block: 2 pcs.
3. Tool box : 1 set.
4. Hoses: 1 set.
DescriptionLG952HD with RVR-D8 for Weathered rock, productivity 60-100CBM/hour.

One set parts pictures

  • Bottom rubber
  • N2 gas charging
  • Tool box & hoses
  • Tool box & hoses

RVR-D10 SUPERPOSITION DOUBLE MOTORS TYPE

ModelRVR-D10
Power255-320 KW
Motor110*3 CC
Impact force860 KN
Length4340 mm
Width1160 mm
Height2360 mm
Wroking flow450-675 L/min
Working power26-31 Mpa
Weight14500 Kg
Excavator90-120 T
One set included1. Vibro ripper: 1 set.
2. Bottom damping block: 2 pcs.
3. Tool box : 1 set.
4. Hoses: 1 set.
DescriptionCAT349 with RVRD10, productivity 5000 cubic meter per day.

One set parts pictures

  • Bottom rubber
  • N2 gas charging
  • Tool box & hoses
  • Tool box & hoses
