China Pile Breaker Manufacturer

Specialized attachments pile breaker to cut and remove concrete piles. Critical for foundation and bridge demolition.

  • Quiet, Environment-Friendly Operation: Full hydraulic drive minimizes noise and environmental impact.
  • Cost-Effective Design: Simplified operation reduces labor and maintenance costs.
  • Modular Versatility: Adaptable to circular/square piles via interchangeable modules.
  • Compact & Portable: Lightweight for easy transportation and site maneuverability.
Contact us Brochure

Attachments – Pile Breaker

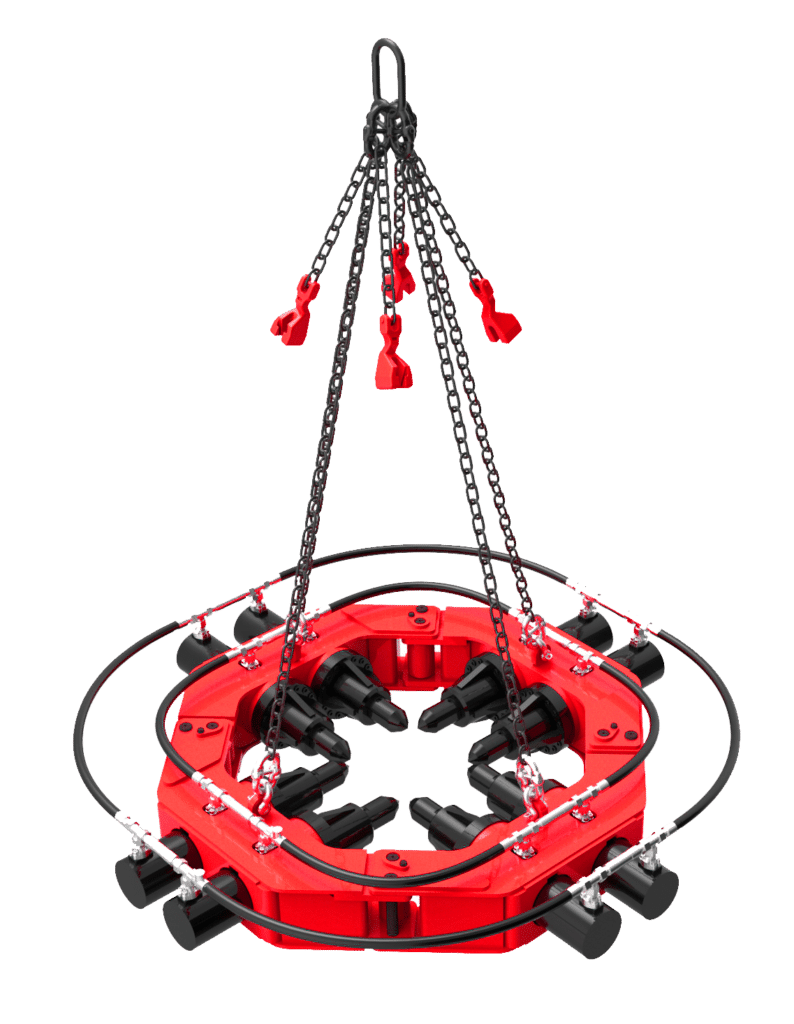

Pile Breaker-Round Type

Round Type models SP380 and SP800 are made for round piles. SP380 suits small – diameter ones in residential or light commercial projects. SP800 is for large round piles in heavy – duty construction and infrastructure.

ModelSP380SP800
Range of Pile diameterΦ950-Φ1050Φ1650-Φ1800
Max.  force for single rod320KN790KN
Max. stroke of hydraulic cylinder150mm205mm
Max. pressure of  hydraulic cylinder34.3Mpa34.3Mpa
Max.  low for Single cylinder25L/mim25L/mim
Cut the number of piles(8 hours)6040- 100
Max. Height for  single crush≤300mm≤300mm
Suitable carrier≥30t≥35t
Single module weight110kg385kg
Single module size604×594×286908×680×380
Dimensions at workingΦ2268×2500Φ3200×3000
Total pile breaker weight1.5t4.62t
ModelModule numbersSuitable pile diameterSuitable carrierTotal WeighetMax.Height for single crush
UnitmmTonKgmm
SP380
(light duty)		7300-40012920300
8450-500131030300
9550-625151140300
10650-750181250300
11800-900211360300
12950-1050261470300
SP800
(Heavy duty)		6500-600202335300
7650-800222720300
8850-1000263100300
91050-1200273480300
101250-1400303860300
111450-1600324240300
121650-1800354620300
131850-2000365000300

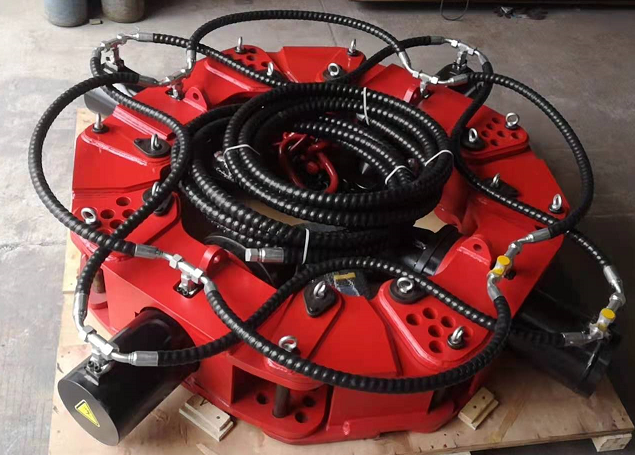

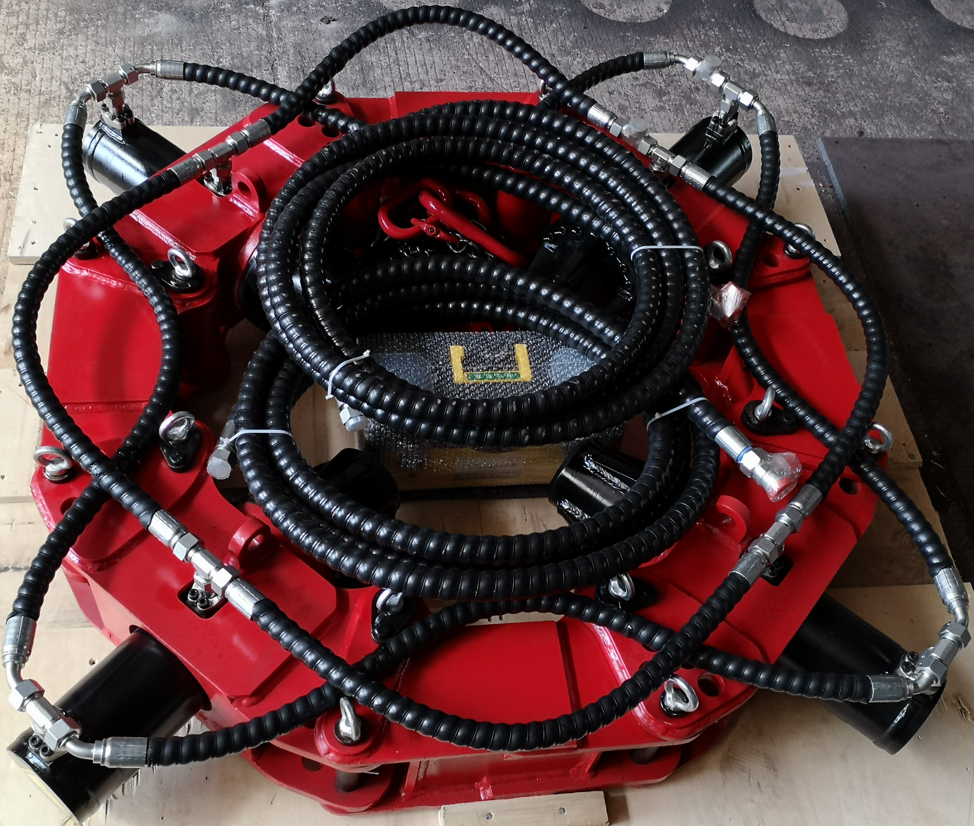

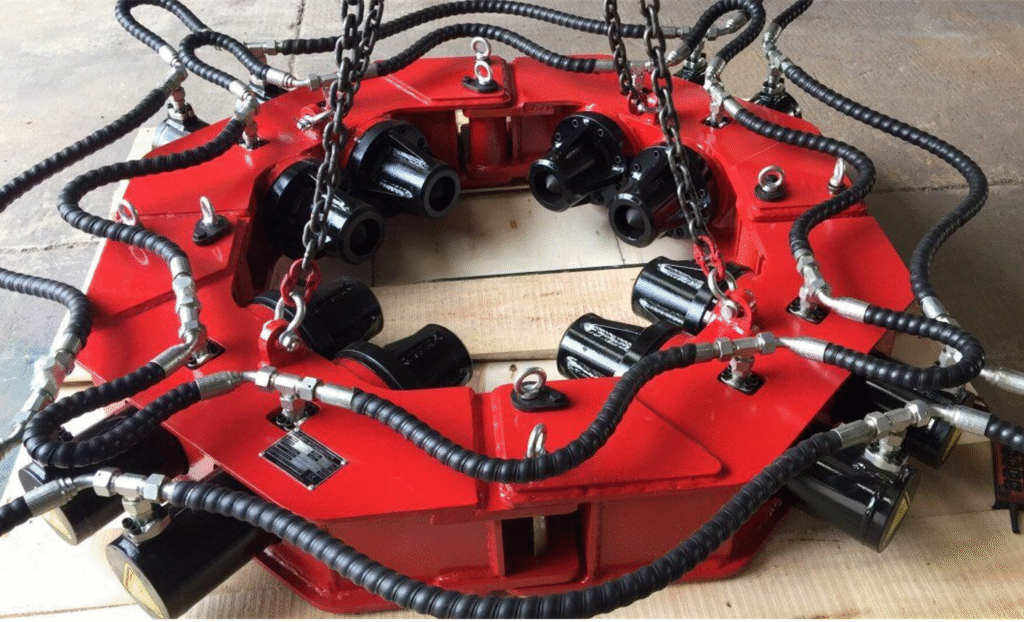

Pile Breaker-Square Type

Square Type has SP400, SP500, and SP600. SP400 fits small – sized square piles in general building. SP500 is for medium – sized ones across various projects. SP600 is designed for large – sized square piles in major construction like high – rises and large – scale infrastructure.

ModelUnitSP400(Light)SP500(Light)SP600(Heavy)
Range of pile breakermm300-400400-500300-550
Max force for single rodKN320320790
Max stroke of hydraulic cylindermm150150205
Pressure of hydraulic cylinderMpa34.334.334.3
Max flow for single cylinderL/min252525
Max height for each crushmm≤300≤300≤300
Suitable carrierT≥8≥15≥20
Single moulde weightkg110220400
Single module sizemm604*594*286595*980*275910*780*400
Dimensions at workingmm1600*1600*20001710*1710*25002050*2050*2000
Total pile breaker weightkg6509502000

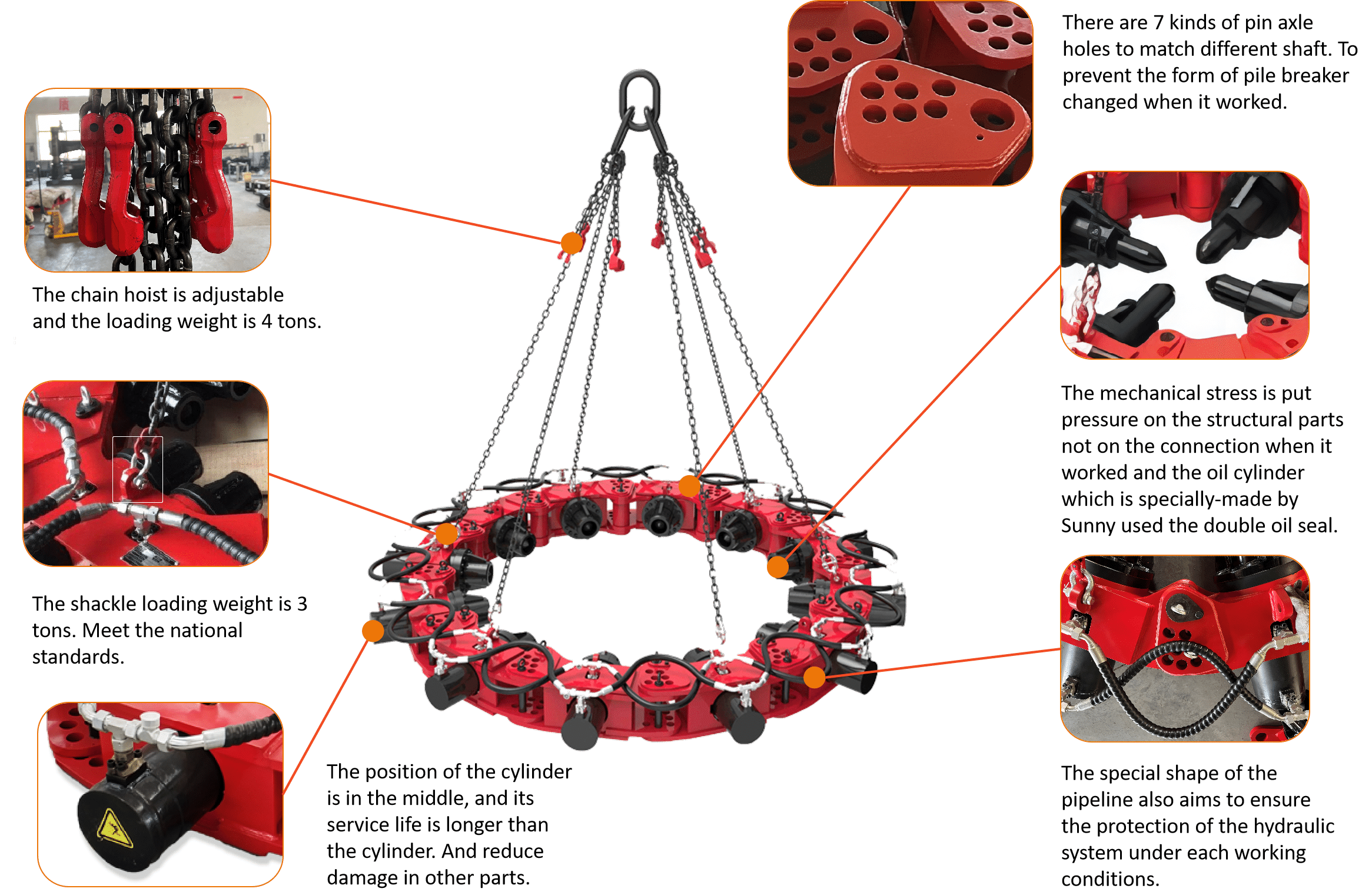

Pile Breaker Features

  • The chain hoist is adjustable and the loading weight is 4 tons.
  • The shackle loading weight is 3 tons. Meet the national standards.
  • The position of the cylinder is in the middle, and its service life is longer than the cylinder. And reduce damage in other parts.
  • There are 7 kinds of pin axle holes to match different shaft. To prevent the form of pile breaker changed when it worked.
  • The mechanical stress is put pressure on the structural parts not on the connection when it worked and the oil cylinder which is specially-made by Sunny used the double oil seal.
  • The special shape of the pipeline also aims to ensure the protection of the hydraulic system under each working conditions.
