China Hydraulic Breaker Manufacturer

Hydraulic rock breakers for concrete and stone fragmentation. Widely used in mining, construction, and quarrying.

  • High precision matching ensures stable, durable striking power and durability.
  • Precise grinding ensures tolerance under 0.01mm, maintaining strong striking power.
  • Liquid nitrogen cooling ensures a tight, wear-resistant, damage-preventing match.
Contact us Brochure

Attachments – Hydraulic Breaker

Top Type Hydraulic Breaker

1. Easy to locate and control.
2. More conducive to excavation.
3. Weight lighter, the lower the risk of broken chisels.

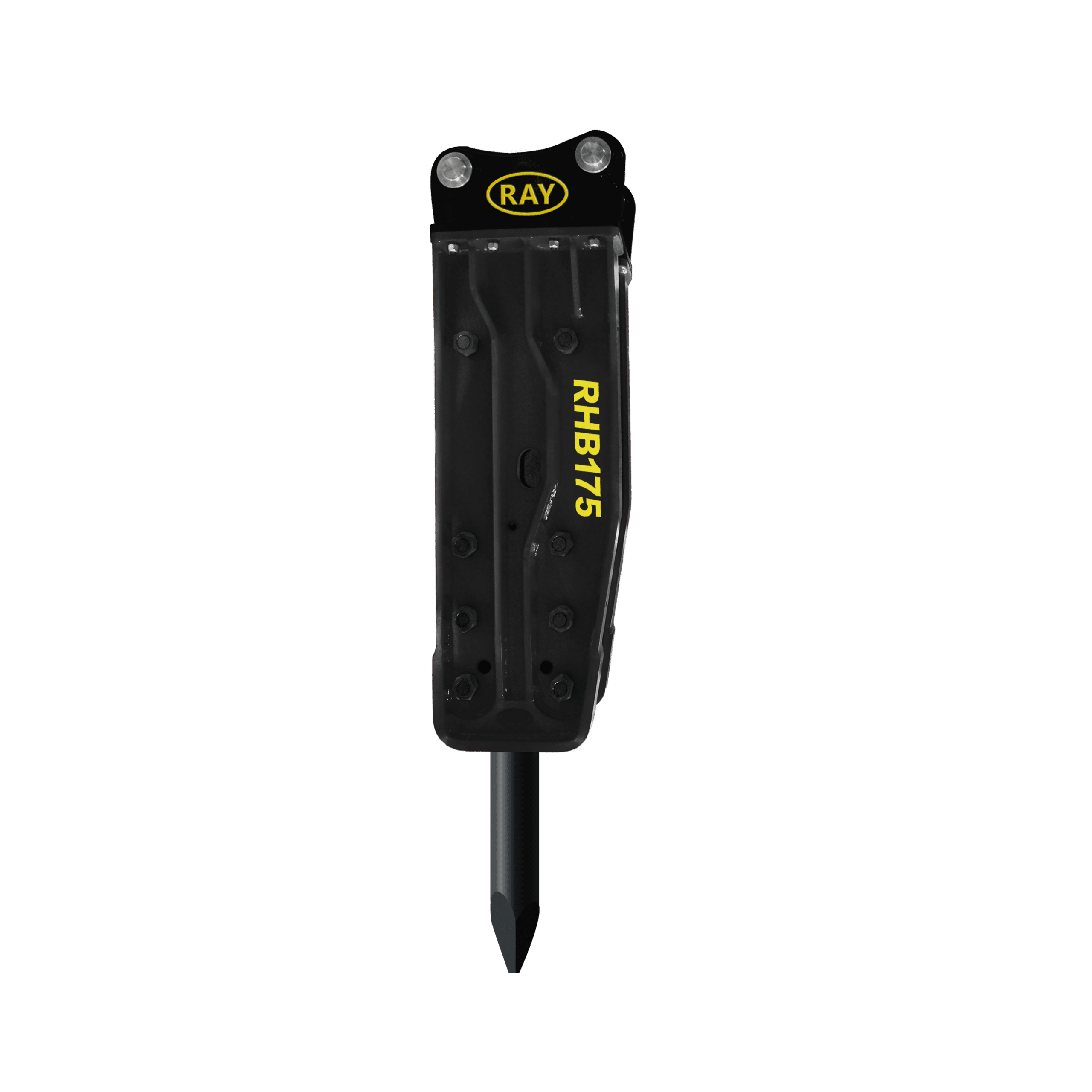

Box-Silenced type Hydraulic Breaker

1. Reduce noise.
2. Protect the environment.

Side Type Hydraulic Breaker

1. Overall length shorter.
2. Hook back things conveniently.
3. Maintenance-free.

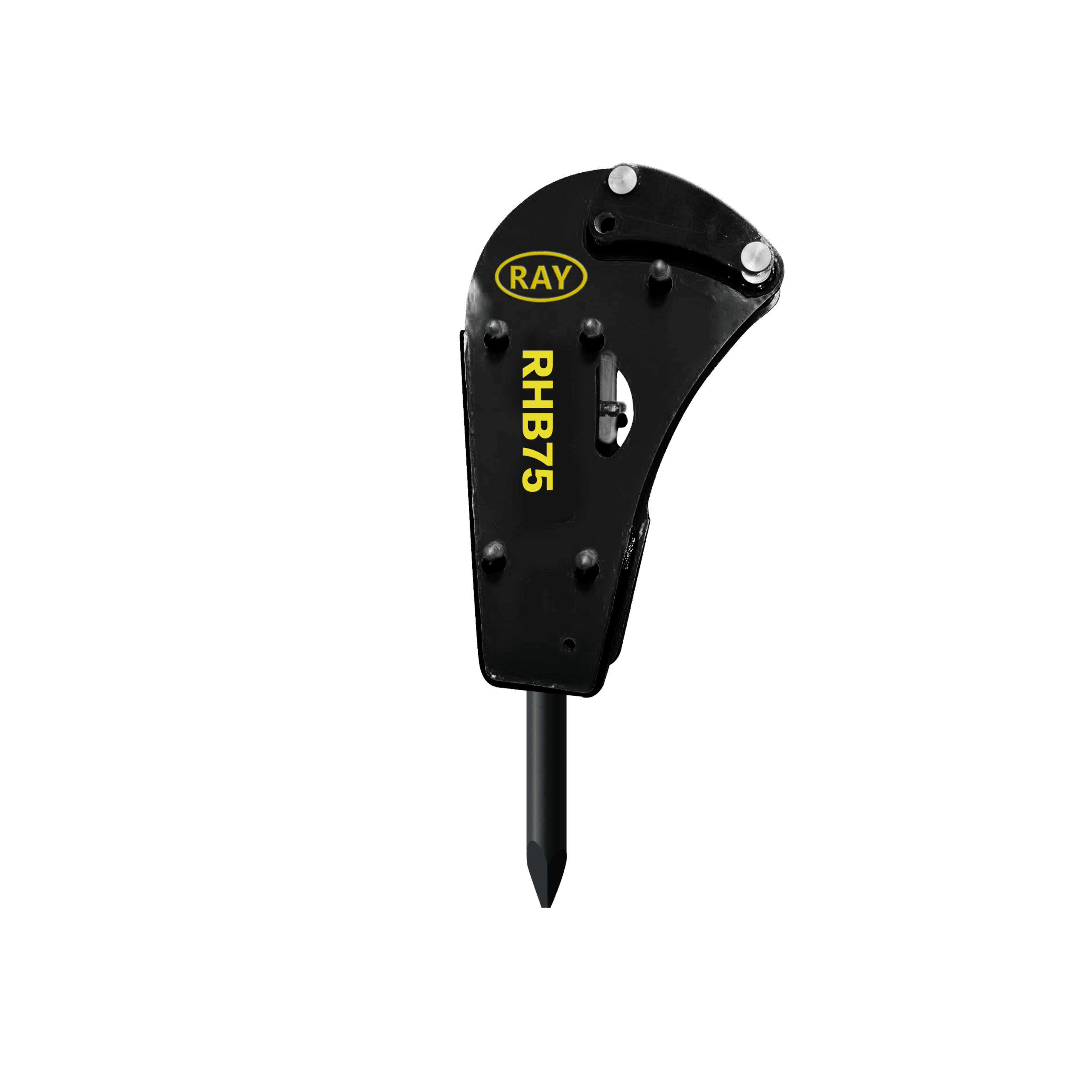

Backhoe Loader Type Hydraulic Breaker

For JCB 3CX, 4CX, Case 580, CAT 416D, John Deere 310J, 410J.

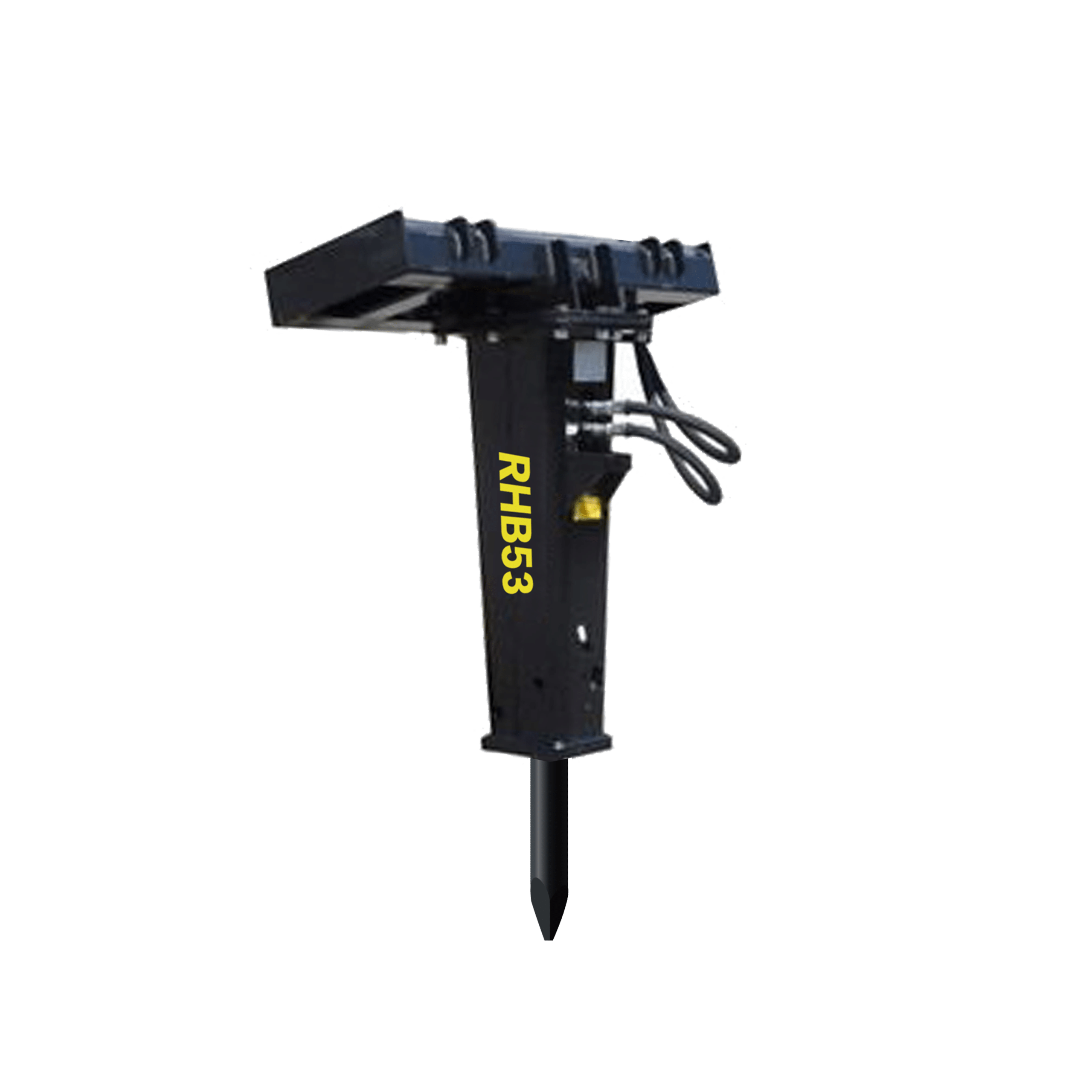

Skid Steer Loader Type Hydraulic Breaker

For Bobcat 185, CAT 216, CAT 226, 262, and other brands.

ItemModelRHB40RHB45RHB53RHB68RHB75RHB80RHB85RHB100RHB125RHB135RHB135G
Total WeightSide(Kg)7095158263334335559761127716531680
Top(Kg)7295158343409410637866130818471880
Box(Kg)1021291803614504517331007137118931930
Operating
Preasure		Kg/cm²90-12090-12090-120110-140120-150120-150120-150150-170150-170160-180160-180
Psi1280-17041280-17041280-17041562-19881562-19881704-21301704-21302130-24142130-24142272-25562272-2556
Oil FlowI/min15-2520-3025-5040-7050-9050-9060-10080-11090-120130-150145-180
Gpm4-75-86.6-13.210.5-18.510.5-18.513.1-23.615.8-26.321.1-29.123.7-31.734.3-39.638.3-47.6
Impact
Frequency		bpm800-1400700-1200600-1100500-900400-800400-800400-800350-700350-650400-600350-500
Dia.of Hosemm12.712.712.712.712.712.719.0519.0525.425.425.4
inch1/21/21/21/21/21/23/43/4111
Chisel
Diameter		mm404553687575/8085100125135135
inch1.5710772.082.682.682.953.353.944.925.315.31
Chisel
Length		mm4305005807007107117451055113012001200
inch16.9319.6922.8327.5627.9527.9929.3341.5444.4947.2447.24
Chisel
Weight		Kg489182226295794115115
Suitable
Excavator		lbs/pounds1764-55122646-66145512-99218818-1543213228-1984213228-1984215432-3086522046-3306933069-3968339683-5732044092-57320
Ton0.8-2.51.2-3.02.5-4.54.0-7.06.0-9.06.0-9.07.0-1410.0-15.015-1818-2620-26

For Large Excavator

ItemModelRHB140RHB140ARHB150RHB155RHB165RHB175RHB185RHB195RHB200RHB210
Total WeightSide(Kg)1774180922182577327739054365532959007050
Top(Kg)205920942380274534474057484456236547/
Box(Kg)20120462457296829753902480053306210/
Operating
Preasure		Kg/cm²160-180160-180160-180160-180160-190160-190220-270250-300250-300270-300
Psi2272-25562272-25562272-25562272-25562272-26992272-26993132-38433552-42603552-42603834-4260
Oil FlowI/min120-180120-180150-190180-240200-250200-260220-270240-310260-330270-330
Gpm31.7-47.631.7-47.639.6-50.247.6-63.3652.8-65.7952.8-68.4258.08-71.2863.36-81.8468.64-87.1270.35-87.12
Impact
Frequency		bpm350-500350-500350-700300-450250-380200-350120-200100-150100-150100-150
Dia.of Hosemm25.425.425.431.7531.7531.7531.7531.7531.7531.75
inch1111-1/41-1/41-1/41-1/41-1/41-1/41-1/4
Chisel
Diameter		mm140140150155165175185195200210
inch5.51 5.51 5.91 6.10 6.50 6.89 7.28 7.68 7.87 8.27
Chisel
Length		mm1300130013001500150016001600165016501750
inch51.1851.18 51.18 59.06 59.06 62.99 62.99 64.96 64.96 68.90
Chisel
Weight		Kg126135157190215255260304315366
Suitable
Excavator		lbs/pounds39683-5732039683-5732059525-7716261729-7716266139-8818577161-9920888185-12125499208-121254110231-132277132277-154324
Ton18-2618-2627-3528-3530-4035-4540-5545-5550-6060-70

Ray Eagle Shear Features

  1. Through bolt: The front head, the cylinder, and the back head of the main body are tightly fixed with four through bolts.
  2. Valve: The cylindrical compensates for pressure in the hydraulic circuit piston reciprocation.
  3. Piston: The kinetic energy of the piston is converted into hammering energy after hitting the chisel. The raw material: 20CrNiMoA(best), 35CrNiMoA, 40CrNiMoA, and some suppliers use only GCr15 to decrease the cost.
  4. Main Body: Including Front head, cylinder, and back head. Ensure your breaker will be in the best performance
  5. Chisel: The specially heat-treated chisel is directly applied to break rocks. There are Five types for choosing: Moil(M), Blunt(B), H-wedge(H), V-wedge(V), and Conical Point(C). The material is 42Crmo.
  6. Ring Bush & Front Cover: Guiding the chisel while they are working. Using 20CrMo steel as raw materials, which are provided by domestic famous manufacturers; forging again and again to make forming, to make the internal organization tight, and increase products’ wear-resistance.
  7. Seal Kit: We can supply seal kits that are the most famous brand in the business line.

About
RAY Attachments

Founded in 2002, RAY began with the production of steel pipes and evolved into a profound understanding of excavator needs. Initially engaged in trade, we were among the pioneers in bringing Chinese manufacturing excellence to the world and introducing hydraulic breakers to the international market. Our first international client, Mr. Yousaf, came from Qatar in 2009, marking the beginning of many successful collaborations.

Learn More
Play

Hassle-Free Warranty

12 months – 36 months (option)


One-stop Shopping

Save your 30% cost at least
Save 50% time

Quick Response

2 hours response
Provide the solution within 12 hours

Business Support

Customer multiplier plan


Related Attachments

Featured Videos

Frequently asked questions

We are a manufacturer. We have over 23 years of experience in manufacturing attachments of excavators and skid steers. Changzhou Raymond International Trading Co., Ltd is our export platform.

We provide 12 months warranty, more details, please contact us.

Our attachments fit 1.5-120 tonnage excavators, covering leading brands such as SANY, XCMG, LIUGONG, ZOOMLION, SUNWARD, CAT, JCB, KOBELO, HITACHI, KOMATSU, DOOSAN, etc. We have over 8 years of experience collaborating with authorized excavator brand distributors globally.

Yes, we provide OEM, please share more details and discuss with us.

Payment≤20000 USD, 100% in advance.

Payment＞20000 USD, 30% T/T in advance, balance after production completed. Or 100%LC at sight.

Normally, 3-5 days after payment.

It takes 20-25 workdays for 2x40ft containers. Sample order in 5 days.

Please tell us which country are your from and what products are you looking for. Because we have some goods in dealer’s warehouse, you can contact us and get their contact number.

We hold ISO 9001:2015 Quality Management System certification and CE compliance for our product range. Additionally, we are an active member of the Association of Equipment Manufacturers (AEM) in the U.S.

Selected attachments utilize high-strength wear-resistant steel and advanced manufacturing processes. Every product undergoes 100% quality inspection to ensure long-term reliability in harsh environments.

We guarantee a 48-hour response time and direct replacement part delivery to resolve problems promptly.

Yes. We offer video tutorials, downloadable operation manuals, and remote diagnostic support.

You need to pass the enterprise qualification review, including business license, industry experience, etc., and sign a cooperation agreement.

The authorization policies in different regions may be different, so you need to contact the corresponding regional business department.

Submit your proposal to our Marketing Department in advance for approval.
