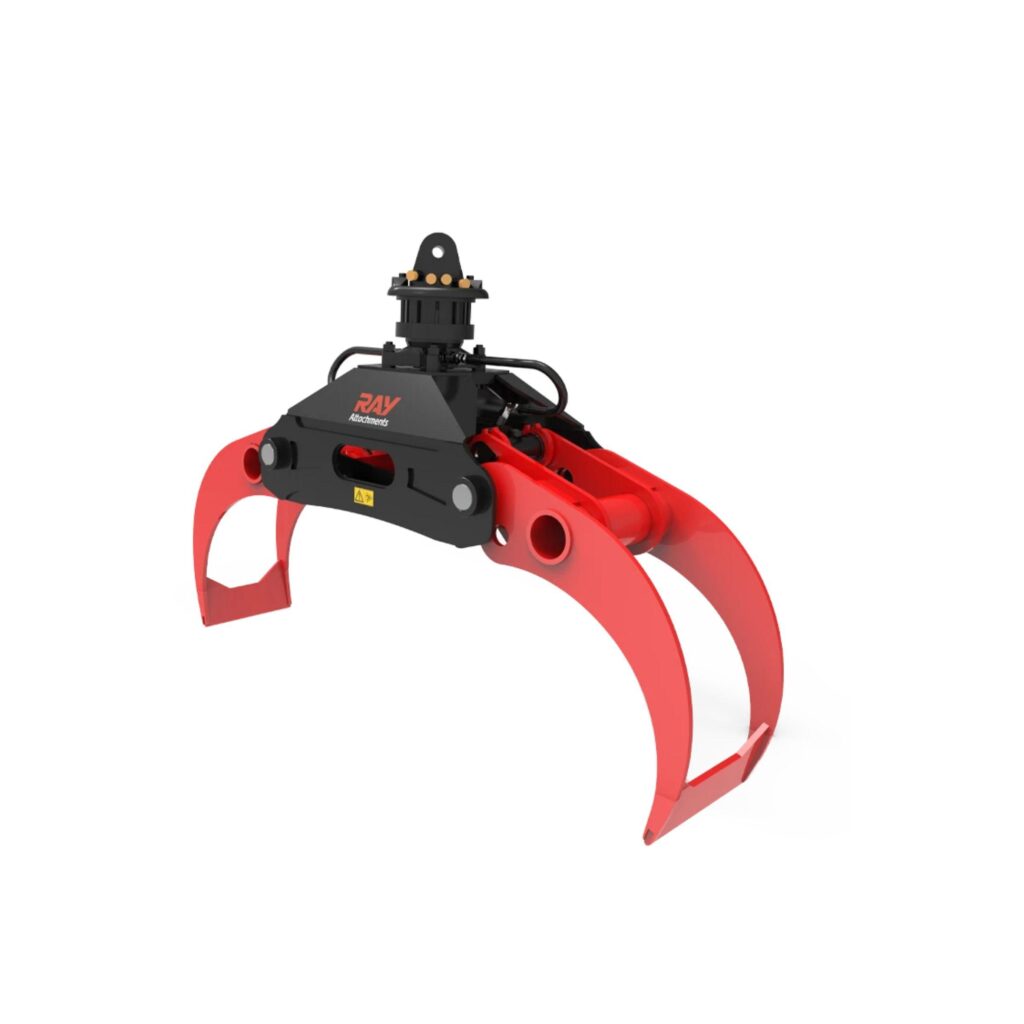

China Log Grab Manufacturer

Specialized forestry log grapples to lift and transport logs securely. Optimized for timber yards and logging operations.

  • The safety check valve in cylinder prevents the grabbed material from falling down.
  • Excellent abrasion resistance NM400 and high gradient prolong its life.
  • Multi purpose application.
  • Safe grab even in high speed or sudden stop.
Contact us Brochure

Attachments – Log Grab

Log grapple is also selected according to the weight of your excavator. Matching excavators of 1-24 tons.Mainly used in gardening and tree grabbing. RLG1000 matches 1-3 tons, RLG1200 matches 3-5 tons, RLG1400 matches 5-7 tons, RLG1700 matches 12-16 tons, and RLG2000 matches 17-24 tons

ModelUnitRLG1000RLG1200RLG1400RLG1700RLG2000
Excavator weightTon1-31-55-712-1617-24
Lbs/Pounds2000 – 60002000 – 1000010000 – 1400024000 – 3200034000 – 48000
Weight
(Without motor)		Kg6982139260365
Lbs/Pounds152181306573805
Weight
(With motor)		Kg89107169312435
Lbs/Pounds196236373688959
Working pressureBar210210210210210
Max loadKg15002000200030005000
Lbs/Pounds330744094409661411023
Max clamp powerKN9.512141721
MateriaMaterial NM400NM400 NM400NM400NM400
Rotation motorModel30F40F50F60F100F
Oil hoseinch3/83/83/81/21/2

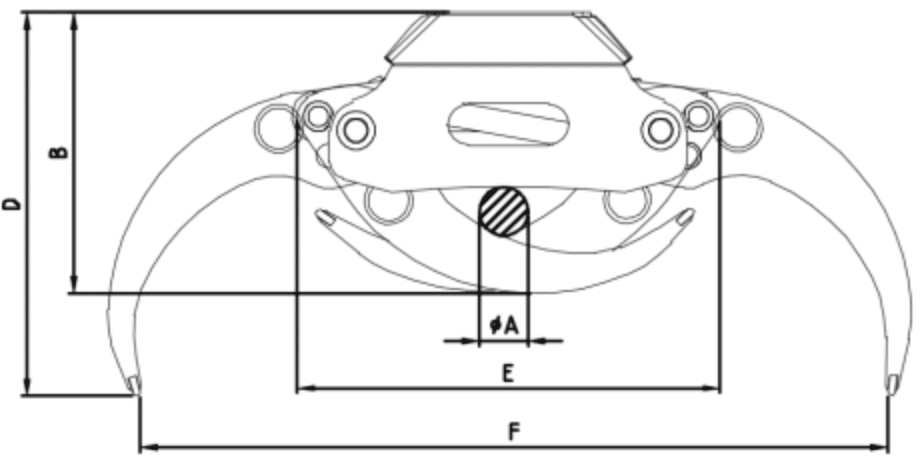

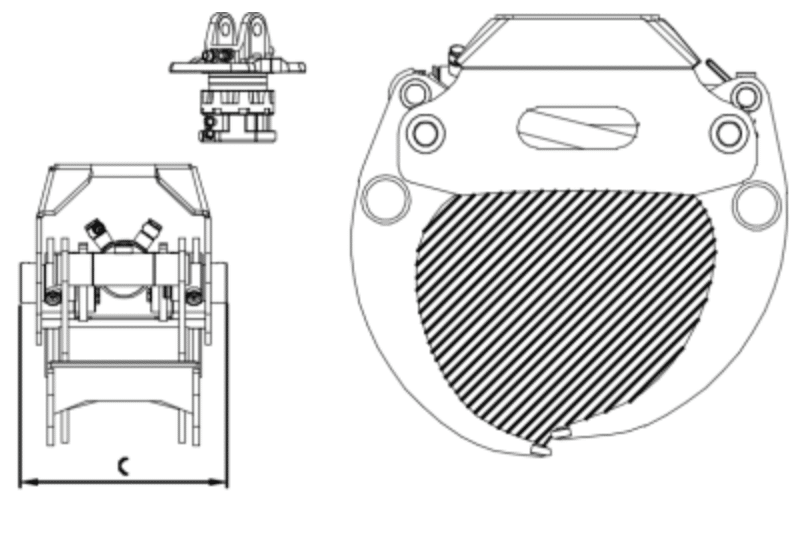

UnitRLG1000RLG1200RLG1400RLG1700RLG2000
Aream20.140.160.230.260.48
Amm457982105130
inch1.773.113.234.135.12
Bmm440465525560720
inch17.3218.3120.6722.0528.35
Cmm307327445483573
inch12.0912.8717.5219.0222.56
Dmm6756337556601050
inch24.9225.9826.5729.7241.34
Emm6656998718331195
inch26.1827.5232.834.2947.05
Fmm10051220141017002005
inch39.5748.0355.5166.9378.94

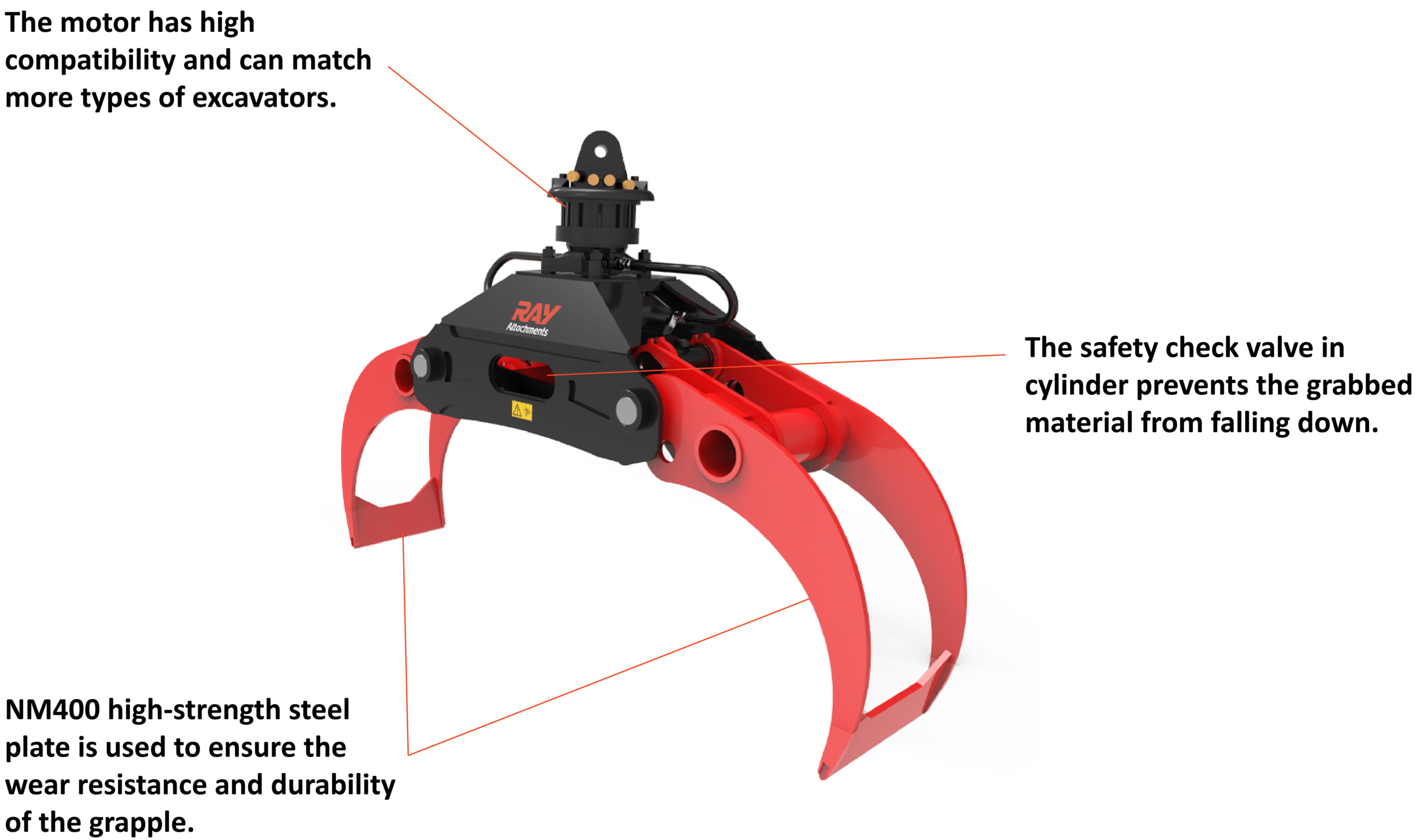

Log Grab Features

1. NM400 high-strength steel plate is used to ensure the wear resistance and durability of the grapple.

2. The safety check valve in cylinder prevents the grabbed material from falling down.

3. The motor has high compatibility and can match more types of excavators.
