China Plie Driver Manufacturer

Powerful excavator attachments vibro hammer to extract plie driver. Essential for foundation work, bridges, and marine projects.

  • Core parts adopted famous brand.
  • The clip mouth and shock absorbing frame is formed by mould casting, more durable.
  • Electronic control system for convenient operation.
  • Two-level double pumps are combined to greatly increase the excitation force.
  • 180 degree +180 degree rotation for convenient adjustment of direction.
Contact us Brochure

Attachments – Plie Driver

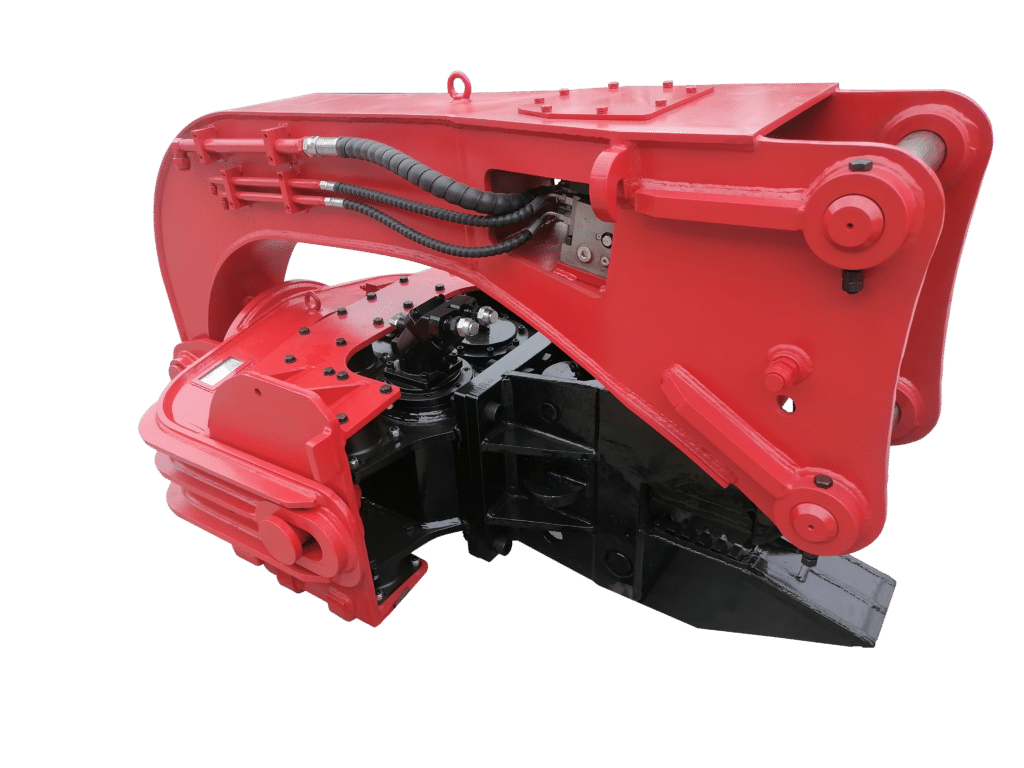

The Vibro Hammers, including models RV-100, RV-150, RV-250, RV-280, RV-300, RV-330, RV-350, and RV-400, are highly efficient excavator attachments specialized in pile driving and extraction operations. Perfectly suited for various foundation works in construction, bridge building, and waterfront projects.

  • The RV-100 model is designed to pair with 7 – 12 ton excavators, providing precise and powerful performance for relatively smaller scale tasks.
  • The RV-150 is tailored for 12 – 17 ton machinery, offering enhanced capabilities to handle more demanding jobs.
  • For medium-sized projects, the RV-250 works optimally with 20 – 25 ton excavators.
  • When it comes to heavier-duty applications, the RV-280 is engineered to fit 25 – 30 ton equipment.
  • The RV-300 is a great match for 30 – 33 ton excavators, ensuring reliable operation.
  • The RV-330 is built to work in harmony with 33 – 38 ton machinery, delivering robust performance.
  • The RV-350 is designed for 38 – 45 ton excavators, handling large-scale pile works with ease.
  • RV-400 is customized for 45 – 52 ton heavy-duty excavators, taking on the toughest foundation challenges.
ModelUnitRV-100RV-150RV-250RV-280RV-300RV-330RV-350RV-400
Vibration Frequencyrpm25002500280032003200320032003200
Operation PressureMpa3030323232323232
Centrifugal Forcekn117172265335350372455485
Max.Pile LengthStandard (m)45777888
Standard (inch)157.48 196.85 275.59 275.59 275.59 314.96 314.96 314.96
Cylinder down (m)68999101010
Cylinder down (inch)236.22 314.96 354.33 354.33 354.33 393.70 393.70 393.70
Extension arm (m)//121213151818
Extension arm（inch)//472.44 472.44 511.81 590.55 708.66 708.66
Arm weightkg160260500500670670750750
lbs/pounds352.74 573.20 1102.31 1102.31 1477.10 1477.10 1653.47 1653.47
Arm sizemm1242*300*7101800*300*7502600*500*9002600*500*9002650*600*9002650*600*9002700*500*9402700*500*940
inch48.90 × 11.81 × 27.9570.87 × 11.81 × 29.53102.36 × 19.69 × 35.43102.36 × 19.69 × 35.43104.33 × 23.62 × 35.43104.33 × 23.62 × 35.43106.30 × 19.69 × 37.01106.30 × 19.69 × 37.01
Sizemm1160*960*10031210*1050*11201500*1110*14001500*1300*15001750*1450*13501750*1450*13501850*1600*15501850*1600*1550
inch45.67*37.8*39.4947.64 × 41.34 × 44.0959.06 × 43.70 × 55.1259.06 × 51.18 × 59.0668.90 × 57.09 × 53.1568.90 × 57.09 × 53.1572.84 × 62.99 × 61.0272.84 × 62.99 × 61.02
Hammer weightkg8501100170019002100230026002700
lbs/pounds1873.93 2425.08 3747.85 4188.78 4629.70 5070.63 5732.01 5952.47
ExcavatorT7-1212-1720-2525-3030-3333-3838-4545-52
lbs/pounds15432-2645526455-3747844092-5511655116-6614066140-7275272752-8377683776-9920899208-114640

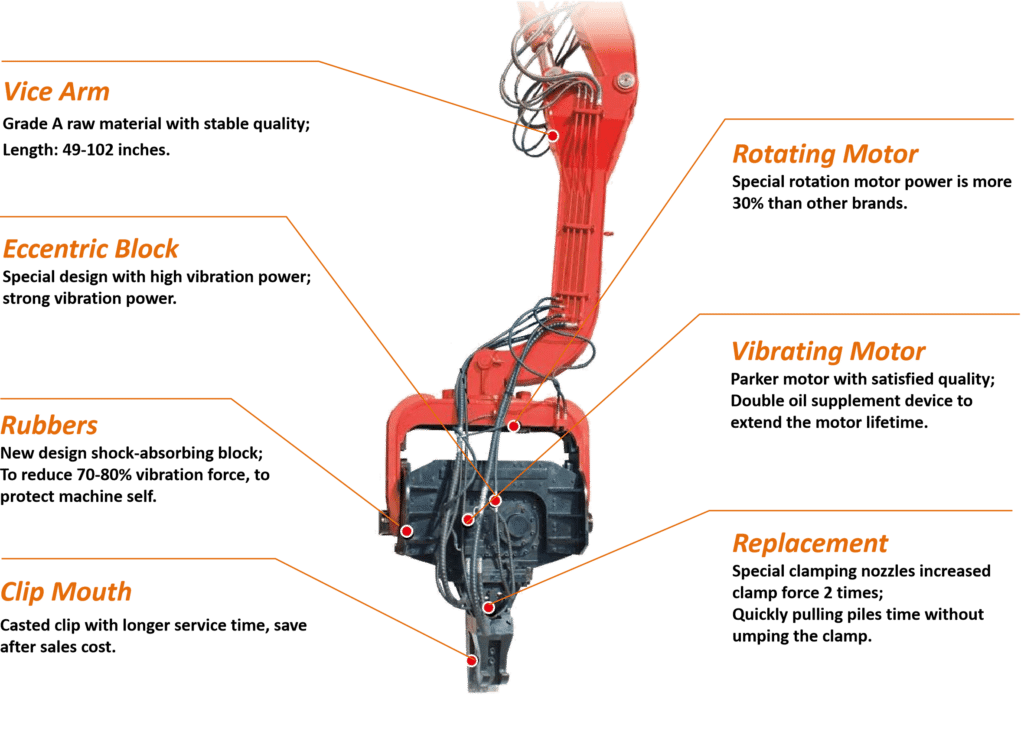

Ray Plie Driver

  • Vice Arm: Grade A raw material with stable quality, Length: 49-102 inches.
  • Eccentric Block: Special design with high vibration power, strong vibration power.
  • Rubbers: New design shock-absorbing block, To reduce 70-80% vibration force, to protect machine self.
  • Clip Mouth: Casted clip with longer service time, save after sales cost.
  • Rotating Motor: Special rotation motor power is more 30% than other brands.
  • Vibrating Motor: Parker motor with satisfied quality, Double oil supplement device to extend the motor lifetime.
  • Replacement: Special clamping nozzles increased clamp force 2 times, Quickly pulling piles time without umping the clamp.
