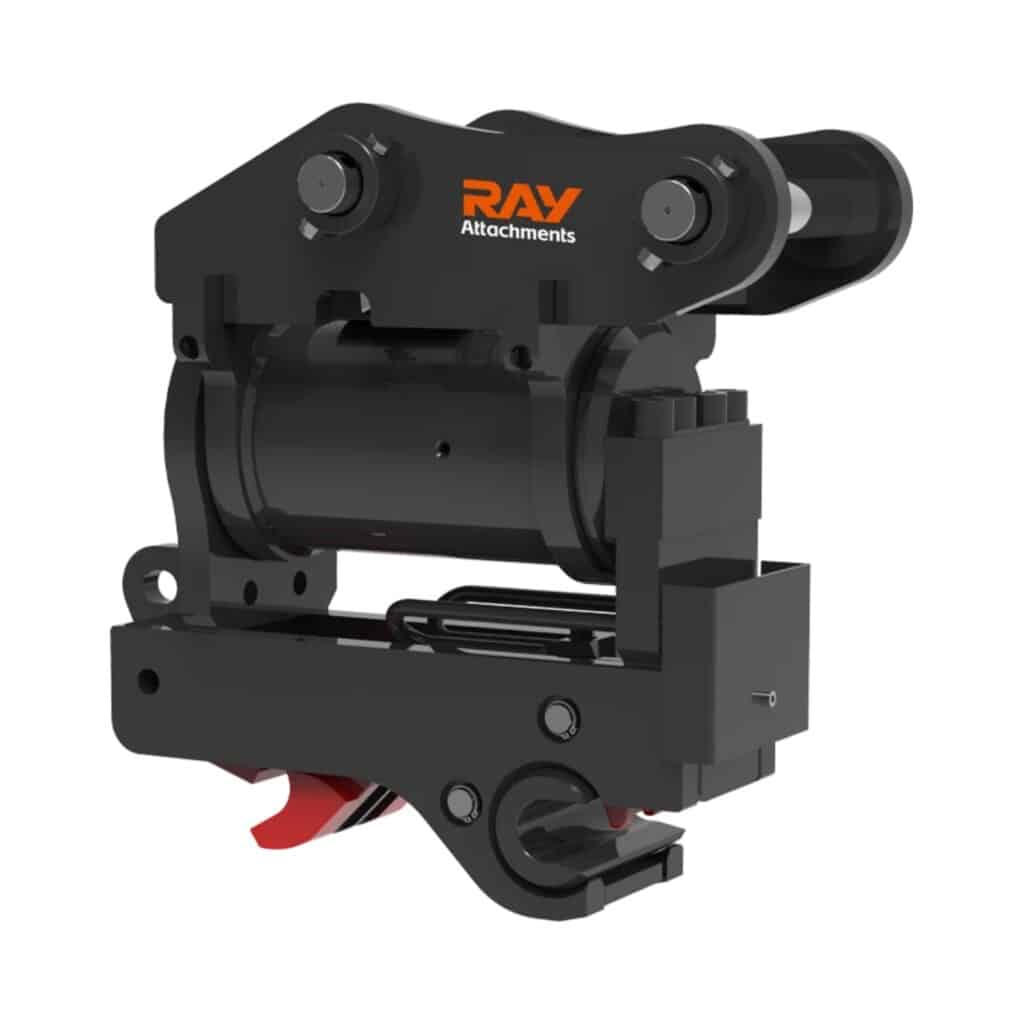

China Tilting Quick Hitch Manufacturer

Hydraulic tilting hitches for angled tool operation. Provides 140-180° flexibility for complex terrain tasks.

  • 140-180° tilt angle make the project operate flexibly even in the tight spaces.
  • Triple-lock design ensures reliability and security.
  • Fully automated operation eliminates the need to leave the driver’s seat.
Contact us Brochure

Attachments – Tilting Quick Hitch

The RQH01T, RQH02T, RQH04T, RQH06T and RQH08T Tilting Quick Couplers are innovative excavator attachments crafted to provide efficient tilting functionality for various attachments. Tailored for construction, landscaping, and infrastructure projects.

The RQH01T model is suitable for 1 – 4 ton machinery. It allows for seamless attachment changes while enabling tilting operations, enhancing flexibility on the job site.

  • The RQH02T is engineered for 4 – 6 ton excavators, offering reliable performance and precise tilting control.
  • The RQH04T, designed for 6 – 10 ton equipment, is built to withstand heavy – duty usage and provide smooth tilting action.
  • The RQH06T, compatible with 10 – 15 ton excavators, is a high – quality option that ensures stable and accurate tilting during operations.
  • The RQH08T, suitable for 15 – 23 ton machinery, offers enhanced durability and powerful tilting capabilities, making it an ideal choice for large – scale projects.
ItmeModelUnitRQH01TRQH02TRQH04TRQH06TRQH08T
Tilting quick hitchExcavatorT
lbs/pounds		1~4
2200~8800		4~6
8800~13200		6~10
13200~22000		10~15
22200~33000		15~23
33000~50600
WeightKG
lbs/pounds		52
114.4		130
286		250
550		350
770		530
1166
Size(L*W*H)mm
Inch		390*205*410
15.35*8.07*16.14		595*365*565
23.43*14.37*22.24		700*310*655
27.56*12.20*25.79		840*390*750
33.07*15.35*29.53		920*470*830
36.22*18.5*32.68
CylinderMax pressureBar
Psi		200
2900		200
2900		200
2900		200
2900		200
2900
Operation flowL/min
Gpm		10-20
2.6-5.2		10-20
2.6-5.2		10-20
2.6-5.2		10-20
2.6-5.2		10-20
2.6-5.2
Tilting CylinderMax pressureBar
Psi		210
3046		210
3046		210
3046		210
3046		210
3046
Oil flowL/min
Gpm		2-3
0.52-0.79		6-10
1.6-2.6		15-20
3.9-5.3		20-25
5.3-6.6		25-32
6.6-8.5
Tilt Angle°180180180180140
Tilt TorqueN.m90032007000900015000
Remaining TorqueN.m24007200200002600043000

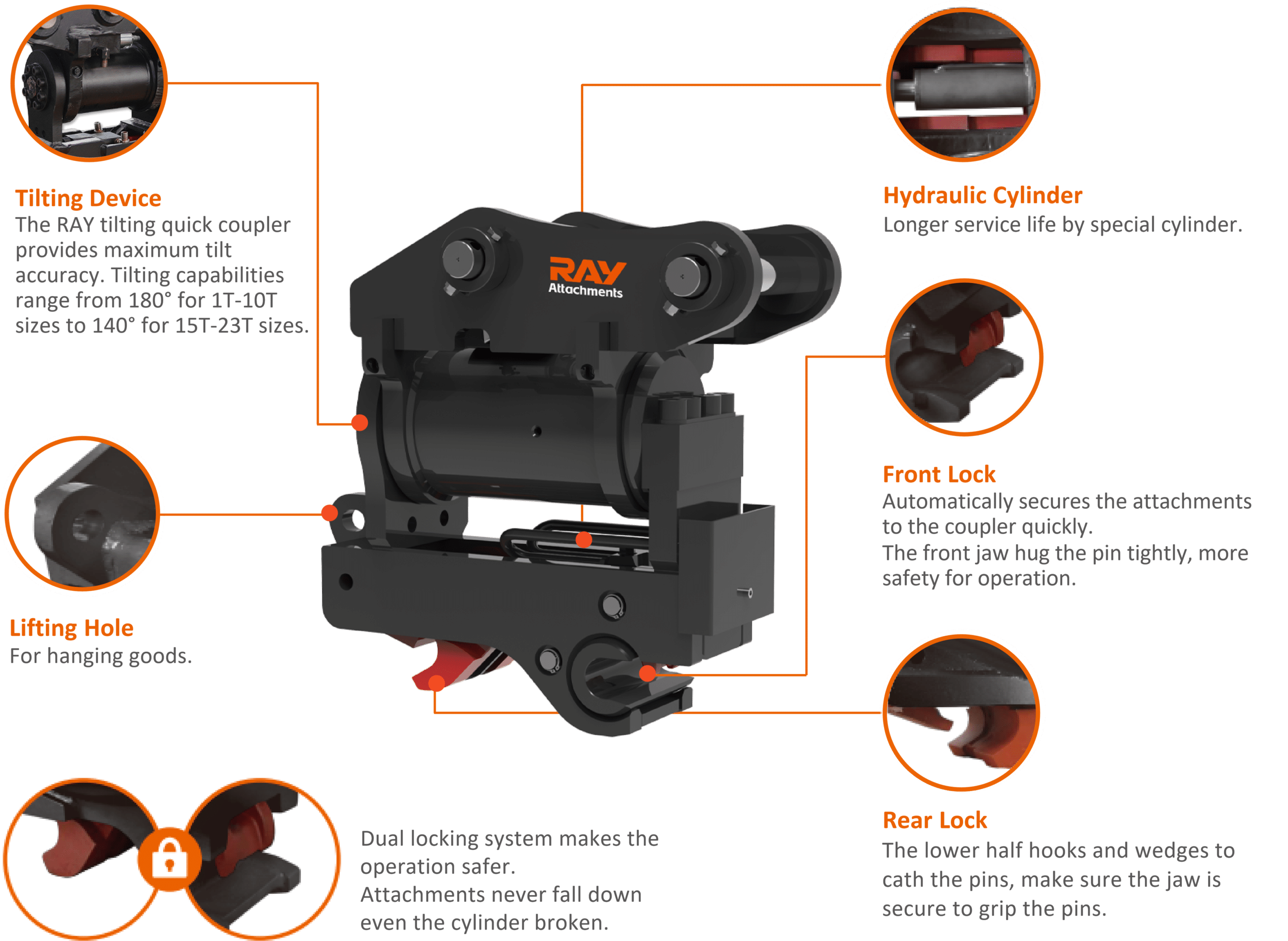

Tilting Quick Hitch Features

Tilting Device: The RAY tilting quick coupler provides maximum tilt accuracy. Tilting capabilities range from 180° for 1T-10T sizes to 140° for 15T-23T sizes.

Lifting Hole: For hanging goods.

Hydraulic Cylinder: Longer service life by special cylinder.

Front Lock: Automatically secures the attachments to the coupler quickly. The front jaw hug the pin tightly, more safety for operation.

Rear Lock: The lower half hooks and wedges to cath the pins, make sure the jaw is secure to grip the pins.

Dual locking system makes the operation safer. Attachments never fall down even the cylinder broken.

About
RAY Attachments

Founded in 2002, RAY began with the production of steel pipes and evolved into a profound understanding of excavator needs. Initially engaged in trade, we were among the pioneers in bringing Chinese manufacturing excellence to the world and introducing hydraulic breakers to the international market. Our first international client, Mr. Yousaf, came from Qatar in 2009, marking the beginning of many successful collaborations.

Learn More
Play

Hassle-Free Warranty

12 months – 36 months (option)


One-stop Shopping

Save your 30% cost at least
Save 50% time

Quick Response

2 hours response
Provide the solution within 12 hours

Business Support

Customer multiplier plan


Related Attachments

Featured Videos

Frequently asked questions

We are a manufacturer. We have over 23 years of experience in manufacturing attachments of excavators and skid steers. Changzhou Raymond International Trading Co., Ltd is our export platform.

We provide 12 months warranty, more details, please contact us.

Our attachments fit 1.5-120 tonnage excavators, covering leading brands such as SANY, XCMG, LIUGONG, ZOOMLION, SUNWARD, CAT, JCB, KOBELO, HITACHI, KOMATSU, DOOSAN, etc. We have over 8 years of experience collaborating with authorized excavator brand distributors globally.

Yes, we provide OEM, please share more details and discuss with us.

Payment≤20000 USD, 100% in advance.

Payment＞20000 USD, 30% T/T in advance, balance after production completed. Or 100%LC at sight.

Normally, 3-5 days after payment.

It takes 20-25 workdays for 2x40ft containers. Sample order in 5 days.

Please tell us which country are your from and what products are you looking for. Because we have some goods in dealer’s warehouse, you can contact us and get their contact number.

We hold ISO 9001:2015 Quality Management System certification and CE compliance for our product range. Additionally, we are an active member of the Association of Equipment Manufacturers (AEM) in the U.S.

Selected attachments utilize high-strength wear-resistant steel and advanced manufacturing processes. Every product undergoes 100% quality inspection to ensure long-term reliability in harsh environments.

We guarantee a 48-hour response time and direct replacement part delivery to resolve problems promptly.

Yes. We offer video tutorials, downloadable operation manuals, and remote diagnostic support.

You need to pass the enterprise qualification review, including business license, industry experience, etc., and sign a cooperation agreement.

The authorization policies in different regions may be different, so you need to contact the corresponding regional business department.

Submit your proposal to our Marketing Department in advance for approval.
